Base class for theories. More...

#include <theory.h>

Inherited by CVC3::TheoryArith, CVC3::TheoryArray, CVC3::TheoryBitvector, CVC3::TheoryCore, CVC3::TheoryDatatype, CVC3::TheoryQuant, CVC3::TheoryRecords, CVC3::TheorySimulate, and CVC3::TheoryUF.

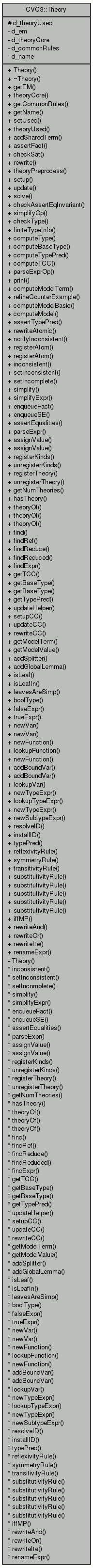

Collaboration diagram for CVC3::Theory:

[legend]

List of all members.

Public Member Functions

Theory (TheoryCore *theoryCore, const std::string &name)
Whether theory has been used (for smtlib translator)
virtual ~Theory (void)
Destructor.
ExprManager * getEM ()
Access to ExprManager.
TheoryCore * theoryCore ()
Get a pointer to theoryCore.
CommonProofRules * getCommonRules ()
Get a pointer to common proof rules.
const std::string & getName () const
Get the name of the theory (for debugging purposes)
virtual void setUsed ()
Set the "used" flag on this theory (for smtlib translator)
virtual bool theoryUsed ()
Get whether theory has been used (for smtlib translator)
virtual void addSharedTerm (const Expr &e)
Notify theory of a new shared term.
virtual void assertFact (const Theorem &e)=0
Assert a new fact to the decision procedure.
virtual void checkSat (bool fullEffort)=0
Check for satisfiability in the theory.
virtual Theorem rewrite (const Expr &e)
Theory-specific rewrite rules.
virtual Theorem theoryPreprocess (const Expr &e)
Theory-specific preprocessing.
virtual void setup (const Expr &e)
Set up the term e for call-backs when e or its children change.
virtual void update (const Theorem &e, const Expr &d)
Notify a theory of a new equality.
virtual Theorem solve (const Theorem &e)
An optional solver.
virtual void checkAssertEqInvariant (const Theorem &e)
A debug check used by the primary solver.
virtual Theorem simplifyOp (const Expr &e)
Recursive simplification step.
virtual void checkType (const Expr &e)
Check that e is a valid Type expr.
virtual Cardinality finiteTypeInfo (Expr &e, Unsigned &n, bool enumerate, bool computeSize)
Compute information related to finiteness of types.
virtual void computeType (const Expr &e)
Compute and store the type of e.
virtual Type computeBaseType (const Type &tp)
Compute the base type of the top-level operator of an arbitrary type.
virtual Expr computeTypePred (const Type &t, const Expr &e)
Theory specific computation of the subtyping predicate for type t applied to the expression e.
virtual Expr computeTCC (const Expr &e)
Compute and cache the TCC of e.
virtual Expr parseExprOp (const Expr &e)
Theory-specific parsing implemented by the DP.
virtual ExprStream & print (ExprStream &os, const Expr &e)
Theory-specific pretty-printing.
virtual void computeModelTerm (const Expr &e, std::vector< Expr > &v)
Add variables from 'e' to 'v' for constructing a concrete model.
virtual void refineCounterExample ()
Process disequalities from the arrangement for model generation.
virtual void computeModelBasic (const std::vector< Expr > &v)
Assign concrete values to basic-type variables in v.
virtual void computeModel (const Expr &e, std::vector< Expr > &vars)
Compute the value of a compound variable from the more primitive ones.
virtual void assertTypePred (const Expr &e, const Theorem &pred)
Receives all the type predicates for the types of the given theory.
virtual Theorem rewriteAtomic (const Expr &e)
Theory-specific rewrites for atomic formulas.
virtual void notifyInconsistent (const Theorem &thm)
Notification of conflict.
virtual void registerAtom (const Expr &e, const Theorem &thm)
virtual void registerAtom (const Expr &e)
Theory-specific registration of atoms.

Core Framework Functionality

These methods provide convenient access to core functionality for the benefit of decision procedures.

virtual bool inconsistent ()
Check if the current context is inconsistent.
virtual void setInconsistent (const Theorem &e)
Make the context inconsistent; The formula proved by e must FALSE.
virtual void setIncomplete (const std::string &reason)
Mark the current decision branch as possibly incomplete.
virtual Theorem simplify (const Expr &e)
Simplify a term e and return a Theorem(e==e')
Expr simplifyExpr (const Expr &e)
Simplify a term e w.r.t. the current context.
virtual void enqueueFact (const Theorem &e)
Submit a derived fact to the core from a decision procedure.
virtual void enqueueSE (const Theorem &e)
Check if the current context is inconsistent.
virtual void assertEqualities (const Theorem &e)
Handle new equalities (usually asserted through addFact)
virtual Expr parseExpr (const Expr &e)
Parse the generic expression.
virtual void assignValue (const Expr &t, const Expr &val)
Assigns t a concrete value val. Used in model generation.
virtual void assignValue (const Theorem &thm)
Record a derived assignment to a variable (LHS).

Theory Helper Methods

These methods provide basic functionality needed by all theories.

void registerKinds (Theory *theory, std::vector< int > &kinds)
Register new kinds with the given theory.
void unregisterKinds (Theory *theory, std::vector< int > &kinds)
Unregister kinds for a theory.
void registerTheory (Theory *theory, std::vector< int > &kinds, bool hasSolver=false)
Register a new theory.
void unregisterTheory (Theory *theory, std::vector< int > &kinds, bool hasSolver)
Unregister a theory.
int getNumTheories ()
Return the number of registered theories.
bool hasTheory (int kind)
Test whether a kind maps to any theory.
Theory * theoryOf (int kind)
Return the theory associated with a kind.
Theory * theoryOf (const Type &e)
Return the theory associated with a type.
Theory * theoryOf (const Expr &e)
Return the theory associated with an Expr.
Theorem find (const Expr &e)
Return the theorem that e is equal to its find.
const Theorem & findRef (const Expr &e)
Return the find as a reference: expr must have a find.
Theorem findReduce (const Expr &e)
Return find-reduced version of e.
bool findReduced (const Expr &e)
Return true iff e is find-reduced.
Expr findExpr (const Expr &e)
Return the find of e, or e if it has no find.
Expr getTCC (const Expr &e)
Compute the TCC of e, or the subtyping predicate, if e is a type.
Type getBaseType (const Expr &e)
Compute (or look up in cache) the base type of e and return the result.
Type getBaseType (const Type &tp)
Compute the base type from an arbitrary type.
Expr getTypePred (const Type &t, const Expr &e)
Calls the correct theory to compute a type predicate.
Theorem updateHelper (const Expr &e)
Update the children of the term e.
void setupCC (const Expr &e)
Setup a term for congruence closure (must have sig and rep attributes)
void updateCC (const Theorem &e, const Expr &d)
Update a term w.r.t. congruence closure (must be setup with setupCC())
Theorem rewriteCC (const Expr &e)
Rewrite a term w.r.t. congruence closure (must be setup with setupCC())
void getModelTerm (const Expr &e, std::vector< Expr > &v)
Calls the correct theory to get all of the terms that need to be assigned values in the concrete model.
Theorem getModelValue (const Expr &e)
Fetch the concrete assignment to the variable during model generation.
void addSplitter (const Expr &e, int priority=0)
Suggest a splitter to the SearchEngine.
void addGlobalLemma (const Theorem &thm, int priority=0)
Add a global lemma.

Core Testers

bool isLeaf (const Expr &e)
Test if e is an i-leaf term for the current theory.
bool isLeafIn (const Expr &e1, const Expr &e2)
Test if e1 is an i-leaf in e2.
bool leavesAreSimp (const Expr &e)
Test if all i-leaves of e are simplified.

Common Type and Expr Methods

Type boolType ()
Return BOOLEAN type.
const Expr & falseExpr ()
Return FALSE Expr.
const Expr & trueExpr ()
Return TRUE Expr.
Expr newVar (const std::string &name, const Type &type)
Create a new variable given its name and type.
Expr newVar (const std::string &name, const Type &type, const Expr &def)
Create a new named expression given its name, type, and definition.
Op newFunction (const std::string &name, const Type &type, bool computeTransClosure)
Create a new uninterpreted function.
Op lookupFunction (const std::string &name, Type *type)
Look up a function by name.
Op newFunction (const std::string &name, const Type &type, const Expr &def)
Create a new defined function.
Expr addBoundVar (const std::string &name, const Type &type)
Create and add a new bound variable to the stack, for parseExprOp().
Expr addBoundVar (const std::string &name, const Type &type, const Expr &def)
Create and add a new bound named def to the stack, for parseExprOp().
Expr lookupVar (const std::string &name, Type *type)
Lookup variable and return it and its type. Return NULL Expr if it doesn't exist yet.
Type newTypeExpr (const std::string &name)
Create a new uninterpreted type with the given name.
Type lookupTypeExpr (const std::string &name)
Lookup type by name. Return Null if no such type exists.
Type newTypeExpr (const std::string &name, const Type &def)
Create a new type abbreviation with the given name.
Type newSubtypeExpr (const Expr &pred, const Expr &witness)
Create a new subtype expression.
Expr resolveID (const std::string &name)
Resolve an identifier, for use in parseExprOp()
void installID (const std::string &name, const Expr &e)
Install name as a new identifier associated with Expr e.
Theorem typePred (const Expr &e)
Return BOOLEAN type.

Commonly Used Proof Rules

Theorem reflexivityRule (const Expr &a)
==> a == a
Theorem symmetryRule (const Theorem &a1_eq_a2)
a1 == a2 ==> a2 == a1
Theorem transitivityRule (const Theorem &a1_eq_a2, const Theorem &a2_eq_a3)
(a1 == a2) & (a2 == a3) ==> (a1 == a3)
Theorem substitutivityRule (const Op &op, const std::vector< Theorem > &thms)
(c_1 == d_1) & ... & (c_n == d_n) ==> op(c_1,...,c_n) == op(d_1,...,d_n)
Theorem substitutivityRule (const Expr &e, const Theorem &t)
Special case for unary operators.
Theorem substitutivityRule (const Expr &e, const Theorem &t1, const Theorem &t2)
Special case for binary operators.
Theorem substitutivityRule (const Expr &e, const std::vector< unsigned > &changed, const std::vector< Theorem > &thms)
Optimized: only positions which changed are included.
Theorem substitutivityRule (const Expr &e, int changed, const Theorem &thm)
Optimized: only a single position changed.
Theorem iffMP (const Theorem &e1, const Theorem &e1_iff_e2)
e1 AND (e1 IFF e2) ==> e2
Theorem rewriteAnd (const Expr &e)
==> AND(e1,e2) IFF [simplified expr]
Theorem rewriteOr (const Expr &e)
==> OR(e1,...,en) IFF [simplified expr]
Theorem rewriteIte (const Expr &e)
Derived rule for rewriting ITE.
Theorem renameExpr (const Expr &e)
Derived rule to create a new name for an expression.

Protected Attributes

bool d_theoryUsed

Private Member Functions

Theory (void)
Private default constructor.

Private Attributes

ExprManager * d_em
TheoryCore * d_theoryCore
Provides the core functionality.
CommonProofRules * d_commonRules
Commonly used proof rules.
std::string d_name
Name of the theory (for debugging)

Friends

class TheoryCore

Detailed Description

Base class for theories.

Author: Clark Barrett

Created: Thu Jan 30 16:37:56 2003

This is an abstract class which all theories should inherit from. In addition to providing an abstract theory interface, it provides access functions to core functionality. However, in order to avoid duplicating the data structures which implement this functionality, all the functionality is stored in a separate class (which actually derives from this one) called TheoryCore. These two classes work closely together to provide the core functionality.

Definition at line 64 of file theory.h.

Constructor & Destructor Documentation

Theory::Theory ( void ) [private]

Private default constructor.

Everyone besides TheoryCore has to use the public constructor which sets up all the provided functionality automatically.

Definition at line 33 of file theory.cpp.

Theory::Theory	(	TheoryCore *	theoryCore,
		const std::string &	name
	)

Whether theory has been used (for smtlib translator)

Exposed constructor.

Note that each instance of Theory must have a name (mostly for debugging purposes).

Definition at line 36 of file theory.cpp.

Theory::~Theory ( void ) [virtual]

Destructor.

Definition at line 44 of file theory.cpp.

Member Function Documentation

ExprManager* CVC3::Theory::getEM ( ) [inline]

Access to ExprManager.

Definition at line 90 of file theory.h.

References d_em.

TheoryCore* CVC3::Theory::theoryCore ( ) [inline]

Get a pointer to theoryCore.

Definition at line 93 of file theory.h.

References d_theoryCore.

CommonProofRules* CVC3::Theory::getCommonRules ( ) [inline]

Get a pointer to common proof rules.

Definition at line 96 of file theory.h.

References d_commonRules.

const std::string& CVC3::Theory::getName ( ) const [inline]

Get the name of the theory (for debugging purposes)

Definition at line 99 of file theory.h.

References d_name.

Referenced by addSplitter(), assignValue(), CVC3::TheoryCore::buildModel(), CVC3::TheoryCore::collectModelValues(), getModelTerm(), getTCC(), CVC3::operator<<(), and CVC3::TheoryCore::refineCounterExample().

virtual void CVC3::Theory::setUsed ( ) [inline, virtual]

Set the "used" flag on this theory (for smtlib translator)

Definition at line 102 of file theory.h.

References d_theoryUsed.

Referenced by CVC3::Translator::processType().

virtual bool CVC3::Theory::theoryUsed ( ) [inline, virtual]

Get whether theory has been used (for smtlib translator)

Definition at line 104 of file theory.h.

References d_theoryUsed.

Referenced by CVC3::Translator::finish().

bool Theory::inconsistent ( ) [virtual]

Check if the current context is inconsistent.

Reimplemented in CVC3::TheoryCore.

Definition at line 97 of file theory.cpp.

References d_theoryCore, and CVC3::TheoryCore::inconsistent().

Referenced by CVC3::TheoryArithOld::assignVariables(), CVC3::TheoryArithNew::assignVariables(), CVC3::TheoryArith3::assignVariables(), CVC3::TheoryArithOld::checkSat(), CVC3::TheoryArith3::checkSat(), CVC3::TheoryRecords::update(), CVC3::TheoryBitvector::update(), CVC3::TheoryArray::update(), CVC3::TheoryArithOld::update(), CVC3::TheoryArithNew::update(), and CVC3::TheoryArith3::update().

void Theory::setInconsistent ( const Theorem & e ) [virtual]

Make the context inconsistent; The formula proved by e must FALSE.

Reimplemented in CVC3::TheoryCore.

Definition at line 103 of file theory.cpp.

References d_theoryCore, IF_DEBUG, and CVC3::TheoryCore::setInconsistent().

Referenced by CVC3::TheoryBitvector::assertFact(), CVC3::TheoryArithOld::assertFact(), CVC3::TheoryArithNew::assertFact(), CVC3::TheoryArith3::assertFact(), CVC3::TheoryArithNew::checkSat(), CVC3::TheoryDatatypeLazy::mergeLabels(), CVC3::TheoryDatatype::mergeLabels(), and CVC3::TheoryArithOld::update().

void Theory::setIncomplete ( const std::string & reason ) [virtual]

Mark the current decision branch as possibly incomplete.

This should be set when a decision procedure uses an incomplete algorithm, and cannot guarantee satisfiability after the final checkSat() call with full effort. An example would be instantiation of universal quantifiers.

A decision procedure can provide a reason for incompleteness, which will be reported back to the user.

Reimplemented in CVC3::TheoryCore.

Definition at line 112 of file theory.cpp.

References d_theoryCore, and CVC3::TheoryCore::setIncomplete().

Referenced by CVC3::TheoryArithOld::assertFact(), CVC3::TheoryQuant::naiveCheckSat(), and CVC3::TheoryQuant::synCheckSat().

Theorem Theory::simplify ( const Expr & e ) [virtual]

Simplify a term e and return a Theorem(e==e')

See also:: simplifyExpr()

Reimplemented in CVC3::TheoryCore.

Definition at line 119 of file theory.cpp.

References d_theoryCore, and CVC3::TheoryCore::simplify().

Referenced by CVC3::TheoryArith3::assertFact(), CVC3::TheoryUF::checkSat(), CVC3::TheoryBitvector::checkSat(), CVC3::TheoryArray::checkSat(), CVC3::TheoryBitvector::comparebv(), CVC3::TheoryBitvector::computeModel(), CVC3::TheoryArithOld::computeModel(), CVC3::TheoryArithNew::computeModel(), CVC3::TheoryArith3::computeModel(), CVC3::TheoryQuant::enqueueInst(), CVC3::TheoryArithOld::inequalityToFind(), CVC3::TheoryUF::rewrite(), CVC3::TheoryDatatype::rewrite(), CVC3::TheoryArray::rewrite(), CVC3::TheoryArithOld::rewrite(), CVC3::TheoryArithNew::rewrite(), simplifyExpr(), CVC3::TheoryBitvector::update(), CVC3::TheoryArray::update(), and CVC3::TheoryArithOld::update().

Expr CVC3::Theory::simplifyExpr ( const Expr & e ) [inline]

Simplify a term e w.r.t. the current context.

See also:: simplify

Definition at line 430 of file theory.h.

References CVC3::Theorem::getRHS(), and simplify().

void Theory::enqueueFact ( const Theorem & e ) [virtual]

Submit a derived fact to the core from a decision procedure.

Parameters:

e	is the Theorem for the new fact

Reimplemented in CVC3::TheoryCore.

Definition at line 128 of file theory.cpp.

References d_theoryCore, and CVC3::TheoryCore::enqueueFact().

Referenced by CVC3::TheoryUF::assertFact(), CVC3::TheoryRecords::assertFact(), CVC3::TheoryQuant::assertFact(), CVC3::TheoryDatatype::assertFact(), CVC3::TheoryArray::assertFact(), CVC3::TheoryArithOld::assertFact(), CVC3::TheoryArith3::assertFact(), assertTypePred(), CVC3::TheoryUF::checkSat(), CVC3::TheoryQuant::checkSat(), CVC3::TheoryDatatypeLazy::checkSat(), CVC3::TheoryDatatype::checkSat(), CVC3::TheoryBitvector::checkSat(), CVC3::TheoryArray::checkSat(), CVC3::TheoryArithOld::checkSat(), CVC3::TheoryArith3::checkSat(), CVC3::TheoryArithNew::checkSatInteger(), CVC3::TheoryBitvector::comparebv(), CVC3::TheoryQuant::enqueueInst(), CVC3::TheoryDatatype::instantiate(), CVC3::TheoryArithNew::processFiniteInterval(), CVC3::TheoryArith3::processFiniteInterval(), CVC3::TheoryArithNew::propagateTheory(), CVC3::TheoryArithOld::registerAtom(), CVC3::TheoryQuant::sendInstNew(), CVC3::TheoryRecords::setup(), CVC3::TheoryDatatype::setup(), CVC3::TheoryBitvector::solve(), CVC3::TheoryArithOld::tryPropagate(), CVC3::TheoryUF::update(), CVC3::TheoryDatatype::update(), CVC3::TheoryBitvector::update(), CVC3::TheoryArray::update(), CVC3::TheoryArithOld::update(), CVC3::TheoryArithNew::update(), CVC3::TheoryArith3::update(), and updateCC().

void Theory::enqueueSE ( const Theorem & e ) [virtual]

Check if the current context is inconsistent.

Reimplemented in CVC3::TheoryCore.

Definition at line 134 of file theory.cpp.

References d_theoryCore, and CVC3::TheoryCore::enqueueSE().

void Theory::assertEqualities ( const Theorem & e ) [virtual]

Handle new equalities (usually asserted through addFact)

INVARIANT: the Theorem 'e' is an equality e1==e2, where e2 is i-leaf simplified in the current context, or a conjunction of such equalities.

Reimplemented in CVC3::TheoryCore.

Definition at line 142 of file theory.cpp.

References CVC3::TheoryCore::assertEqualities(), and d_theoryCore.

Referenced by CVC3::TheoryArray::checkSat(), CVC3::TheoryBitvector::comparebv(), CVC3::TheoryRecords::setup(), CVC3::TheoryRecords::update(), CVC3::TheoryBitvector::update(), CVC3::TheoryArray::update(), CVC3::TheoryArithOld::update(), CVC3::TheoryArithNew::update(), and CVC3::TheoryArith3::update().

Expr Theory::parseExpr ( const Expr & e ) [virtual]

Parse the generic expression.

This method should be used in parseExprOp() for recursive calls to subexpressions, and is the method called by the command processor.

Reimplemented in CVC3::TheoryCore.

Definition at line 519 of file theory.cpp.

References d_theoryCore, and CVC3::TheoryCore::parseExpr().

Referenced by CVC3::TheoryUF::parseExprOp(), CVC3::TheorySimulate::parseExprOp(), CVC3::TheoryRecords::parseExprOp(), CVC3::TheoryQuant::parseExprOp(), CVC3::TheoryDatatype::parseExprOp(), CVC3::TheoryBitvector::parseExprOp(), CVC3::TheoryArray::parseExprOp(), CVC3::TheoryArithOld::parseExprOp(), CVC3::TheoryArithNew::parseExprOp(), and CVC3::TheoryArith3::parseExprOp().

void Theory::assignValue	(	const Expr &	t,
		const Expr &	val
	)		`[virtual]`

Assigns t a concrete value val. Used in model generation.

Reimplemented in CVC3::TheoryCore.

Definition at line 162 of file theory.cpp.

References CVC3::TheoryCore::assignValue(), d_theoryCore, getName(), CVC3::Expr::toString(), and TRACE.

Referenced by CVC3::TheoryArithOld::assignVariables(), CVC3::TheoryArithNew::assignVariables(), CVC3::TheoryArith3::assignVariables(), CVC3::TheoryUF::computeModel(), CVC3::TheoryRecords::computeModel(), CVC3::TheoryBitvector::computeModel(), CVC3::TheoryArray::computeModel(), CVC3::TheoryArithOld::computeModel(), CVC3::TheoryArithNew::computeModel(), CVC3::TheoryArith3::computeModel(), and computeModel().

void Theory::assignValue ( const Theorem & thm ) [virtual]

Record a derived assignment to a variable (LHS).

Reimplemented in CVC3::TheoryCore.

Definition at line 170 of file theory.cpp.

References CVC3::TheoryCore::assignValue(), d_theoryCore, getName(), and TRACE.

void Theory::registerKinds	(	Theory *	theory,
		std::vector< int > &	kinds
	)

Register new kinds with the given theory.

Definition at line 177 of file theory.cpp.

References Hash::hash_map< _Key, _Data, _HashFcn, _EqualKey >::count(), d_theoryCore, CVC3::TheoryCore::d_theoryMap, DebugAssert, getEM(), CVC3::ExprManager::getKindName(), and CVC3::int2string().

Referenced by registerTheory().

void Theory::unregisterKinds	(	Theory *	theory,
		std::vector< int > &	kinds
	)

Unregister kinds for a theory.

Definition at line 190 of file theory.cpp.

References d_theoryCore, CVC3::TheoryCore::d_theoryMap, DebugAssert, Hash::hash_map< _Key, _Data, _HashFcn, _EqualKey >::erase(), getEM(), and CVC3::int2string().

Referenced by unregisterTheory().

void Theory::registerTheory	(	Theory *	theory,
		std::vector< int > &	kinds,
		bool	hasSolver = `false`
	)

Register a new theory.

Definition at line 203 of file theory.cpp.

References CVC3::TheoryCore::d_solver, CVC3::TheoryCore::d_theories, d_theoryCore, DebugAssert, and registerKinds().

Referenced by CVC3::TheoryArith3::TheoryArith3(), CVC3::TheoryArithNew::TheoryArithNew(), CVC3::TheoryArithOld::TheoryArithOld(), CVC3::TheoryArray::TheoryArray(), CVC3::TheoryBitvector::TheoryBitvector(), CVC3::TheoryCore::TheoryCore(), CVC3::TheoryDatatype::TheoryDatatype(), CVC3::TheoryQuant::TheoryQuant(), CVC3::TheoryRecords::TheoryRecords(), CVC3::TheorySimulate::TheorySimulate(), and CVC3::TheoryUF::TheoryUF().

void Theory::unregisterTheory	(	Theory *	theory,
		std::vector< int > &	kinds,
		bool	hasSolver
	)

Unregister a theory.

Definition at line 224 of file theory.cpp.

References CVC3::TheoryCore::d_solver, CVC3::TheoryCore::d_theories, d_theoryCore, DebugAssert, and unregisterKinds().

Referenced by CVC3::TheoryArithOld::~TheoryArithOld().

int Theory::getNumTheories ( )

Return the number of registered theories.

Definition at line 241 of file theory.cpp.

References CVC3::TheoryCore::d_theories, and d_theoryCore.

Referenced by CVC3::TheoryCore::buildModel(), and CVC3::TheoryCore::refineCounterExample().

bool Theory::hasTheory ( int kind )

Test whether a kind maps to any theory.

Definition at line 247 of file theory.cpp.

References Hash::hash_map< _Key, _Data, _HashFcn, _EqualKey >::count(), d_theoryCore, and CVC3::TheoryCore::d_theoryMap.

Referenced by CVC3::TheoryCore::parseExpr().

Theory * Theory::theoryOf ( int kind )

Return the theory associated with a kind.

Definition at line 252 of file theory.cpp.

References Hash::hash_map< _Key, _Data, _HashFcn, _EqualKey >::count(), d_theoryCore, CVC3::TheoryCore::d_theoryMap, DebugAssert, getEM(), and CVC3::ExprManager::getKindName().

Theory * Theory::theoryOf ( const Type & e )

Return the theory associated with a type.

Definition at line 260 of file theory.cpp.

References Hash::hash_map< _Key, _Data, _HashFcn, _EqualKey >::count(), d_theoryCore, CVC3::TheoryCore::d_theoryMap, DebugAssert, getBaseType(), getEM(), CVC3::Type::getExpr(), CVC3::ExprManager::getKindName(), CVC3::Expr::getOpKind(), and CVC3::Expr::isNull().

Theory * Theory::theoryOf ( const Expr & e )

Return the theory associated with an Expr.

Definition at line 271 of file theory.cpp.

References Hash::hash_map< _Key, _Data, _HashFcn, _EqualKey >::count(), d_theoryCore, CVC3::TheoryCore::d_theoryMap, DebugAssert, getBaseType(), getEM(), CVC3::Type::getExpr(), CVC3::Expr::getKind(), CVC3::ExprManager::getKindName(), CVC3::Expr::getOpKind(), CVC3::Expr::isApply(), CVC3::Expr::isEq(), CVC3::Expr::isNot(), CVC3::Expr::isNull(), and CVC3::Expr::isVar().

Theorem Theory::find ( const Expr & e )

Return the theorem that e is equal to its find.

Definition at line 310 of file theory.cpp.

References DebugAssert, CVC3::Expr::getFind(), CVC3::Theorem::getLHS(), CVC3::Theorem::getRHS(), CVC3::Expr::hasFind(), CVC3::Theorem::isRefl(), reflexivityRule(), CVC3::Expr::setFind(), and transitivityRule().

const Theorem & Theory::findRef ( const Expr & e )

Return the find as a reference: expr must have a find.

Definition at line 295 of file theory.cpp.

References DebugAssert, CVC3::Expr::getFind(), CVC3::Theorem::getLHS(), CVC3::Theorem::getRHS(), CVC3::Expr::hasFind(), CVC3::Expr::setFind(), and transitivityRule().

Referenced by CVC3::TheoryArray::update(), and updateHelper().

Theorem Theory::findReduce ( const Expr & e )

Return find-reduced version of e.

Definition at line 327 of file theory.cpp.

References CVC3::Expr::arity(), d_commonRules, find(), CVC3::Expr::hasFind(), CVC3::Theorem::isRefl(), reflexivityRule(), and CVC3::CommonProofRules::substitutivityRule().

bool Theory::findReduced ( const Expr & e )

Return true iff e is find-reduced.

Definition at line 357 of file theory.cpp.

References CVC3::Expr::begin(), CVC3::Expr::end(), CVC3::Expr::getFind(), CVC3::Theorem::getRHS(), and CVC3::Expr::hasFind().

Referenced by CVC3::TheoryCore::assertEqualities().

Expr CVC3::Theory::findExpr ( const Expr & e ) [inline]

Return the find of e, or e if it has no find.

Definition at line 503 of file theory.h.

References find(), CVC3::Theorem::getRHS(), and CVC3::Expr::hasFind().

Expr Theory::getTCC ( const Expr & e )

Compute the TCC of e, or the subtyping predicate, if e is a type.

Definition at line 367 of file theory.cpp.

References computeTCC(), CVC3::TheoryCore::d_tccCache, d_theoryCore, CVC3::ExprMap< Data >::end(), CVC3::ExprMap< Data >::find(), CVC3::Expr::getKind(), getName(), CVC3::Expr::isVar(), theoryOf(), TRACE, and trueExpr().

Referenced by CVC3::TheoryUF::computeTCC(), CVC3::TheoryQuant::computeTCC(), CVC3::TheoryCore::computeTCC(), CVC3::TheoryBitvector::computeTCC(), computeTCC(), and newSubtypeExpr().

Type Theory::getBaseType ( const Expr & e )

Compute (or look up in cache) the base type of e and return the result.

Definition at line 383 of file theory.cpp.

References CVC3::Expr::getType().

Type Theory::getBaseType ( const Type & tp )

Compute the base type from an arbitrary type.

Definition at line 389 of file theory.cpp.

References computeBaseType(), DebugAssert, CVC3::Type::getExpr(), CVC3::Expr::isNull(), CVC3::Expr::lookupType(), CVC3::Expr::setType(), theoryOf(), and CVC3::Type::toString().

Expr Theory::getTypePred	(	const Type &	t,
		const Expr &	e
	)

Calls the correct theory to compute a type predicate.

Definition at line 406 of file theory.cpp.

References computeTypePred(), CVC3::Type::getExpr(), CVC3::Expr::getKind(), and theoryOf().

Referenced by CVC3::TheoryUF::computeTCC(), CVC3::TheorySimulate::computeTCC(), CVC3::TheoryRecords::computeTCC(), CVC3::TheoryArray::computeTCC(), CVC3::TheoryRecords::computeTypePred(), and CVC3::TheoryCore::computeTypePred().

Theorem Theory::updateHelper ( const Expr & e )

Update the children of the term e.

When a decision procedure receives a call to update() because a child of a term 'e' has changed, this method can be called to compute the new value of 'e'.

See also:: update

Definition at line 417 of file theory.cpp.

References CVC3::Expr::arity(), d_commonRules, findRef(), CVC3::Theorem::getLHS(), CVC3::Theorem::getRHS(), reflexivityRule(), and CVC3::CommonProofRules::substitutivityRule().

Referenced by CVC3::TheoryUF::update(), CVC3::TheoryRecords::update(), CVC3::TheoryDatatypeLazy::update(), CVC3::TheoryDatatype::update(), CVC3::TheoryArray::update(), and updateCC().

void Theory::setupCC ( const Expr & e )

Setup a term for congruence closure (must have sig and rep attributes)

Definition at line 459 of file theory.cpp.

References CVC3::Expr::addToNotify(), CVC3::Expr::arity(), reflexivityRule(), CVC3::Expr::setRep(), CVC3::Expr::setSig(), and CVC3::Expr::setUsesCC().

Referenced by CVC3::TheoryUF::setup(), CVC3::TheoryRecords::setup(), CVC3::TheoryDatatypeLazy::setup(), and CVC3::TheoryDatatype::setup().

void Theory::updateCC	(	const Theorem &	e,
		const Expr &	d
	)

Update a term w.r.t. congruence closure (must be setup with setupCC())

Definition at line 473 of file theory.cpp.

References CVC3::Expr::addToNotify(), CVC3::Expr::arity(), enqueueFact(), getEM(), CVC3::Expr::getRep(), CVC3::Theorem::getRHS(), CVC3::Expr::getSig(), CVC3::Expr::getType(), CVC3::ExprManager::invalidateSimpCache(), CVC3::Type::isBool(), CVC3::Theorem::isNull(), CVC3::Expr::setRep(), CVC3::Expr::setSig(), symmetryRule(), transitivityRule(), and updateHelper().

Referenced by CVC3::TheoryRecords::update().

Theorem Theory::rewriteCC ( const Expr & e )

Rewrite a term w.r.t. congruence closure (must be setup with setupCC())

Definition at line 512 of file theory.cpp.

References CVC3::Expr::getRep(), CVC3::Theorem::isNull(), reflexivityRule(), and symmetryRule().

Referenced by CVC3::TheoryUF::rewrite(), and CVC3::TheoryRecords::rewrite().

void Theory::getModelTerm	(	const Expr &	e,
		std::vector< Expr > &	v
	)

Calls the correct theory to get all of the terms that need to be assigned values in the concrete model.

Definition at line 527 of file theory.cpp.

References computeModelTerm(), DebugAssert, getBaseType(), getName(), IF_DEBUG, theoryOf(), CVC3::Expr::toString(), and TRACE.

Referenced by CVC3::TheoryCore::collectBasicVars().

Theorem Theory::getModelValue ( const Expr & e )

Fetch the concrete assignment to the variable during model generation.

Reimplemented in CVC3::TheoryCore.

Definition at line 541 of file theory.cpp.

References d_theoryCore, and CVC3::TheoryCore::getModelValue().

Referenced by CVC3::TheoryUF::computeModel(), CVC3::TheoryRecords::computeModel(), CVC3::TheoryBitvector::computeModel(), and CVC3::TheoryArray::computeModel().

void Theory::addSplitter	(	const Expr &	e,
		int	priority = `0`
	)

Suggest a splitter to the SearchEngine.

Definition at line 148 of file theory.cpp.

References CVC3::TheoryCore::d_coreSatAPI, d_theoryCore, DebugAssert, getName(), CVC3::int2string(), CVC3::Expr::isAbsLiteral(), CVC3::Expr::isBoolConst(), and TRACE.

Referenced by CVC3::TheoryArith3::assertFact(), CVC3::TheoryUF::checkSat(), CVC3::TheoryDatatypeLazy::checkSat(), CVC3::TheoryDatatype::checkSat(), CVC3::TheoryArray::checkSat(), CVC3::TheoryBitvector::comparebv(), CVC3::TheoryArithOld::refineCounterExample(), CVC3::TheoryArithNew::refineCounterExample(), and CVC3::TheoryArith3::refineCounterExample().

void Theory::addGlobalLemma	(	const Theorem &	thm,
		int	priority = `0`
	)

Add a global lemma.

Definition at line 157 of file theory.cpp.

References CVC3::TheoryCore::d_coreSatAPI, and d_theoryCore.

bool CVC3::Theory::isLeaf ( const Expr & e ) [inline]

Test if e is an i-leaf term for the current theory.

A term 'e' is an i-leaf for a theory 'i', if it is a variable, or 'e' belongs to a different theory. This definition makes sense for a larger term which by itself belongs to the current theory 'i', but (some of) its children are variables or belong to different theories.

Definition at line 556 of file theory.h.

References CVC3::Expr::isVar(), and theoryOf().

bool Theory::isLeafIn	(	const Expr &	e1,
		const Expr &	e2
	)

Test if e1 is an i-leaf in e2.

See also:: isLeaf

Definition at line 546 of file theory.cpp.

References CVC3::Expr::begin(), DebugAssert, CVC3::Expr::end(), isLeaf(), and theoryOf().

Referenced by CVC3::TheoryBitvector::assertFact(), CVC3::BitvectorTheoremProducer::canonBVEQ(), CVC3::TheoryArithOld::canPickEqMonomial(), CVC3::TheoryArithOld::checkAssertEqInvariant(), CVC3::TheoryArith3::checkAssertEqInvariant(), CVC3::BitvectorTheoremProducer::isolate_var(), CVC3::TheoryBitvector::Odd_coeff(), CVC3::BitvectorTheoremProducer::processExtract(), CVC3::TheoryBitvector::solve(), CVC3::TheoryArithOld::solve(), CVC3::TheoryArithNew::solve(), and CVC3::TheoryArith3::solve().

bool Theory::leavesAreSimp ( const Expr & e )

Test if all i-leaves of e are simplified.

See also:: isLeaf

Definition at line 557 of file theory.cpp.

References CVC3::Expr::arity(), CVC3::Expr::getFind(), CVC3::Theorem::getRHS(), CVC3::Expr::hasFind(), and isLeaf().

Referenced by CVC3::TheoryArithOld::checkAssertEqInvariant(), CVC3::TheoryArith3::checkAssertEqInvariant(), CVC3::TheoryArithOld::rewrite(), CVC3::TheoryArith3::rewrite(), CVC3::TheoryArithNew::update(), and CVC3::TheoryArith3::update().

Type CVC3::Theory::boolType ( ) [inline]

Return BOOLEAN type.

Definition at line 576 of file theory.h.

References d_em, and CVC3::Type::typeBool().

Referenced by CVC3::TheoryCore::computeType(), CVC3::TheoryBitvector::computeType(), CVC3::TheoryArithOld::computeType(), CVC3::TheoryArithNew::computeType(), CVC3::TheoryArith3::computeType(), CVC3::TheoryDatatype::dataType(), CVC3::TheoryQuant::mapTermsByType(), CVC3::TheoryQuant::parseExprOp(), and CVC3::TheoryCore::parseExprOp().

const Expr& CVC3::Theory::falseExpr ( ) [inline]

Return FALSE Expr.

Definition at line 579 of file theory.h.

References d_em, and CVC3::ExprManager::falseExpr().

const Expr& CVC3::Theory::trueExpr ( ) [inline]

Return TRUE Expr.

Definition at line 582 of file theory.h.

References d_em, and CVC3::ExprManager::trueExpr().

Expr Theory::newVar	(	const std::string &	name,
		const Type &	type
	)

Create a new variable given its name and type.

Add the variable to the database for resolving IDs in parseExpr

Definition at line 569 of file theory.cpp.

References CVC3::TheoryCore::addToVarDB(), CVC3::Type::arity(), d_em, d_theoryCore, DebugAssert, getEM(), CVC3::Type::getExpr(), CVC3::Expr::getKind(), installID(), CVC3::Type::isBool(), CVC3::Type::isFunction(), CVC3::Type::isNull(), CVC3::ExprManager::newSymbolExpr(), CVC3::ExprManager::newVarExpr(), resolveID(), CVC3::Type::toString(), TYPEDEF, and UCONST.

Referenced by CVC3::BitvectorTheoremProducer::bvUDivConst(), CVC3::BitvectorTheoremProducer::bvURemConst(), CVC3::TheoryDatatype::getConstant(), CVC3::TheoryArithNew::updateDependencies(), and CVC3::Translator::zeroVar().

Expr Theory::newVar	(	const std::string &	name,
		const Type &	type,
		const Expr &	def
	)

Create a new named expression given its name, type, and definition.

Add the definition to the database for resolving IDs in parseExpr

Definition at line 610 of file theory.cpp.

References ARROW, DebugAssert, getBaseType(), CVC3::Expr::getType(), installID(), CVC3::Expr::isNull(), CVC3::Type::isNull(), resolveID(), CVC3::Type::toString(), and TYPEDEF.

Op Theory::newFunction	(	const std::string &	name,
		const Type &	type,
		bool	computeTransClosure
	)

Create a new uninterpreted function.

Add the definition to the database for resolving IDs in parseExpr

Definition at line 647 of file theory.cpp.

References CVC3::TheoryCore::addToVarDB(), CVC3::Type::arity(), d_theoryCore, DebugAssert, getEM(), CVC3::Type::getExpr(), CVC3::Expr::getKind(), installID(), CVC3::Type::isBool(), CVC3::Type::isFunction(), CVC3::Type::isNull(), CVC3::ExprManager::newSymbolExpr(), resolveID(), CVC3::Type::toString(), TYPEDEF, and UFUNC.

Referenced by CVC3::TheoryDatatype::dataType().

Op Theory::lookupFunction	(	const std::string &	name,
		Type *	type
	)

Look up a function by name.

Returns the function and sets type to the type of the function if it exists. If not, returns a NULL Op object.

Definition at line 697 of file theory.cpp.

References getEM(), CVC3::Expr::lookupType(), CVC3::Expr::mkOp(), CVC3::ExprManager::newSymbolExpr(), and UFUNC.

Op Theory::newFunction	(	const std::string &	name,
		const Type &	type,
		const Expr &	def
	)

Create a new defined function.

Add the definition to the database for resolving IDs in parseExpr

Definition at line 678 of file theory.cpp.

References DebugAssert, installID(), CVC3::Type::isNull(), CVC3::Expr::mkOp(), resolveID(), and CVC3::Type::toString().

Expr Theory::addBoundVar	(	const std::string &	name,
		const Type &	type
	)

Create and add a new bound variable to the stack, for parseExprOp().

The stack is popped automatically upon return from the parseExprOp() which used this method.

Bound variable names may repeat, in which case the latest declaration takes precedence.

Definition at line 709 of file theory.cpp.

References boundVarCount, CVC3::ExprMap< Data >::clear(), CVC3::TheoryCore::d_boundVarMap, CVC3::TheoryCore::d_boundVarStack, CVC3::TheoryCore::d_parseCache, CVC3::TheoryCore::d_parseCacheOther, CVC3::TheoryCore::d_parseCacheTop, d_theoryCore, DebugAssert, CVC3::ExprMap< Data >::empty(), Hash::hash_map< _Key, _Data, _HashFcn, _EqualKey >::end(), Hash::hash_map< _Key, _Data, _HashFcn, _EqualKey >::find(), getEM(), CVC3::Expr::getKind(), RAW_LIST, CVC3::Expr::toString(), and TRACE.

Referenced by CVC3::TheoryUF::parseExprOp(), CVC3::TheoryQuant::parseExprOp(), CVC3::TheoryCore::parseExprOp(), and CVC3::TheoryArray::parseExprOp().

Expr Theory::addBoundVar	(	const std::string &	name,
		const Type &	type,
		const Expr &	def
	)

Create and add a new bound named def to the stack, for parseExprOp().

The stack is popped automatically upon return from the parseExprOp() which used this method.

Bound variable names may repeat, in which case the latest declaration takes precedence.

The type may be Null, but 'def' must always be a valid Expr

Definition at line 738 of file theory.cpp.

References boundVarCount, CVC3::ExprMap< Data >::clear(), CVC3::TheoryCore::d_boundVarMap, CVC3::TheoryCore::d_boundVarStack, CVC3::TheoryCore::d_parseCache, CVC3::TheoryCore::d_parseCacheOther, CVC3::TheoryCore::d_parseCacheTop, d_theoryCore, DebugAssert, CVC3::ExprMap< Data >::empty(), Hash::hash_map< _Key, _Data, _HashFcn, _EqualKey >::end(), Hash::hash_map< _Key, _Data, _HashFcn, _EqualKey >::find(), getEM(), CVC3::Expr::getKind(), CVC3::Type::isNull(), LETDECL, RAW_LIST, CVC3::Expr::toString(), CVC3::Type::toString(), and TRACE.

Expr Theory::lookupVar	(	const std::string &	name,
		Type *	type
	)

Lookup variable and return it and its type. Return NULL Expr if it doesn't exist yet.

Definition at line 776 of file theory.cpp.

References getEM(), CVC3::Expr::lookupType(), and CVC3::ExprManager::newVarExpr().

Type Theory::newTypeExpr ( const std::string & name )

Create a new uninterpreted type with the given name.

Add the name to the global variable database d_globals

Definition at line 790 of file theory.cpp.

References getEM(), installID(), CVC3::Expr::isNull(), resolveID(), and TYPEDECL.

Referenced by CVC3::Translator::finish().

Type Theory::lookupTypeExpr ( const std::string & name )

Lookup type by name. Return Null if no such type exists.

Definition at line 805 of file theory.cpp.

References CVC3::Expr::getKind(), CVC3::Expr::isNull(), CVC3::Expr::isType(), resolveID(), and TYPEDECL.

Type Theory::newTypeExpr	(	const std::string &	name,
		const Type &	def
	)

Create a new type abbreviation with the given name.

Definition at line 872 of file theory.cpp.

References CVC3::Type::getExpr(), installID(), CVC3::Expr::isNull(), and resolveID().

Type Theory::newSubtypeExpr	(	const Expr &	pred,
		const Expr &	witness
	)

Create a new subtype expression.

Definition at line 816 of file theory.cpp.

References CVC3::TheoryCore::d_coreSatAPI, d_em, d_theoryCore, EXISTS, FORALL, CVC3::Expr::getBody(), CVC3::TheoryCore::getFlags(), getTCC(), CVC3::Expr::getType(), CVC3::Expr::getVars(), CVC3::Expr::isLambda(), CVC3::Expr::isNull(), CVC3::Expr::mkOp(), CVC3::ExprManager::newBoundVarExpr(), CVC3::ExprManager::newClosureExpr(), simplifyExpr(), SUBTYPE, and CVC3::Expr::toString().

Referenced by CVC3::TheoryCore::parseExprOp().

Expr Theory::resolveID ( const std::string & name )

Resolve an identifier, for use in parseExprOp()

First, search the bound variable stack, and if the name is not found, search the global constant and type declarations.

Returns:: an expression to use in place of the identifier, or Null if cannot resolve the name.

Definition at line 887 of file theory.cpp.

References CVC3::TheoryCore::d_boundVarMap, CVC3::TheoryCore::d_globals, d_theoryCore, Hash::hash_map< _Key, _Data, _HashFcn, _EqualKey >::end(), Hash::hash_map< _Key, _Data, _HashFcn, _EqualKey >::find(), CVC3::Expr::getKind(), and RAW_LIST.

Referenced by CVC3::TheoryUF::assertFact(), CVC3::TheoryDatatype::checkType(), CVC3::TheoryUF::computeType(), CVC3::TheoryDatatype::dataType(), CVC3::TheoryDatatype::datatypeConsExpr(), CVC3::TheoryDatatype::datatypeSelExpr(), CVC3::TheoryDatatype::datatypeTestExpr(), CVC3::TheoryDatatype::getConstant(), installID(), lookupTypeExpr(), newFunction(), newTypeExpr(), newVar(), CVC3::TheoryCore::parseExpr(), and CVC3::TheoryUF::parseExprOp().

void Theory::installID	(	const std::string &	name,
		const Expr &	e
	)

Install name as a new identifier associated with Expr e.

Definition at line 910 of file theory.cpp.

References CVC3::TheoryCore::d_globals, d_theoryCore, DebugAssert, and resolveID().

Referenced by CVC3::TheoryDatatype::dataType(), newFunction(), newTypeExpr(), and newVar().

Theorem Theory::typePred ( const Expr & e )

Return BOOLEAN type.

Reimplemented in CVC3::TheoryCore.

Definition at line 918 of file theory.cpp.

References d_theoryCore, and CVC3::TheoryCore::typePred().

Referenced by CVC3::TheoryBitvector::assertFact(), CVC3::TheoryArithOld::rewrite(), and CVC3::TheoryArith3::rewrite().

Theorem CVC3::Theory::reflexivityRule ( const Expr & a ) [inline]

==> a == a

Definition at line 673 of file theory.h.

References d_commonRules, and CVC3::CommonProofRules::reflexivityRule().

Theorem CVC3::Theory::symmetryRule ( const Theorem & a1_eq_a2 ) [inline]

a1 == a2 ==> a2 == a1

Definition at line 677 of file theory.h.

References d_commonRules, and CVC3::CommonProofRules::symmetryRule().

Theorem CVC3::Theory::transitivityRule	(	const Theorem &	a1_eq_a2,
		const Theorem &	a2_eq_a3
	)		`[inline]`

(a1 == a2) & (a2 == a3) ==> (a1 == a3)

Definition at line 681 of file theory.h.

References d_commonRules, and CVC3::CommonProofRules::transitivityRule().

Referenced by CVC3::TheoryCore::assertEqualities(), CVC3::TheoryArith3::assertFact(), CVC3::TheoryCore::assignValue(), CVC3::TheoryCore::buildModel(), CVC3::TheoryCore::callTheoryPreprocess(), CVC3::TheoryArithOld::canonSimplify(), CVC3::TheoryArithNew::canonSimplify(), CVC3::TheoryArith::canonThm(), CVC3::TheoryArithOld::checkIntegerEquality(), CVC3::TheoryArray::checkSat(), CVC3::TheoryCore::collectModelValues(), CVC3::TheoryBitvector::comparebv(), CVC3::TheoryUF::computeModel(), CVC3::TheoryRecords::computeModel(), CVC3::TheoryArray::computeModel(), find(), findRef(), CVC3::TheoryBitvector::generalBitBlast(), CVC3::TheoryArithOld::inequalityToFind(), CVC3::TheoryArithOld::normalize(), CVC3::TheoryArithNew::normalize(), CVC3::TheoryArith3::normalize(), CVC3::TheoryArithNew::pivotRule(), CVC3::TheoryArray::pullIndex(), CVC3::TheoryArithOld::rafineInequalityToInteger(), CVC3::TheoryArithNew::rafineIntegerConstraints(), CVC3::TheoryUF::rewrite(), CVC3::TheoryRecords::rewrite(), CVC3::TheoryDatatype::rewrite(), CVC3::TheoryCore::rewrite(), CVC3::TheoryArray::rewrite(), CVC3::TheoryArithOld::rewrite(), CVC3::TheoryArithNew::rewrite(), CVC3::TheoryArith3::rewrite(), CVC3::TheoryBitvector::rewriteBV(), CVC3::TheoryRecords::setup(), CVC3::TheoryCore::simplifyOp(), CVC3::TheoryBitvector::simplifyPendingEq(), CVC3::TheoryUF::update(), CVC3::TheoryRecords::update(), CVC3::TheoryDatatypeLazy::update(), CVC3::TheoryDatatype::update(), CVC3::TheoryCore::update(), CVC3::TheoryBitvector::update(), CVC3::TheoryArray::update(), CVC3::TheoryArithOld::update(), CVC3::TheoryArithNew::update(), CVC3::TheoryArith3::update(), updateCC(), and CVC3::TheoryBitvector::updateSubterms().

Theorem CVC3::Theory::substitutivityRule	(	const Op &	op,
		const std::vector< Theorem > &	thms
	)		`[inline]`

(c_1 == d_1) & ... & (c_n == d_n) ==> op(c_1,...,c_n) == op(d_1,...,d_n)

Definition at line 686 of file theory.h.

References d_commonRules, and CVC3::CommonProofRules::substitutivityRule().

Referenced by CVC3::TheoryArithNew::assertFact(), CVC3::TheoryArray::checkSat(), CVC3::TheoryUF::computeModel(), CVC3::TheoryRecords::computeModel(), CVC3::TheoryArray::computeModel(), CVC3::TheoryBitvector::generalBitBlast(), CVC3::TheoryArithNew::getLowerBoundExplanation(), CVC3::TheoryArithNew::getUpperBoundExplanation(), CVC3::TheoryArithOld::inequalityToFind(), CVC3::TheoryArithNew::processFiniteInterval(), CVC3::TheoryArith3::processFiniteInterval(), CVC3::TheoryArray::pullIndex(), CVC3::TheoryCore::rewrite(), CVC3::TheoryArray::rewrite(), CVC3::TheoryArithNew::rewrite(), CVC3::TheoryRecords::setup(), CVC3::TheoryCore::simplifyOp(), CVC3::TheoryBitvector::simplifyPendingEq(), CVC3::TheoryArithNew::substAndCanonizeModTableaux(), CVC3::TheoryArithNew::substAndCanonizeTableaux(), CVC3::TheoryArray::update(), CVC3::TheoryArithOld::update(), CVC3::TheoryArithNew::update(), CVC3::TheoryArith3::update(), and CVC3::TheoryBitvector::updateSubterms().

Theorem CVC3::Theory::substitutivityRule	(	const Expr &	e,
		const Theorem &	t
	)		`[inline]`

Special case for unary operators.

Definition at line 691 of file theory.h.

References d_commonRules, and CVC3::CommonProofRules::substitutivityRule().

Theorem CVC3::Theory::substitutivityRule	(	const Expr &	e,
		const Theorem &	t1,
		const Theorem &	t2
	)		`[inline]`

Special case for binary operators.

Definition at line 696 of file theory.h.

References d_commonRules, and CVC3::CommonProofRules::substitutivityRule().

Theorem CVC3::Theory::substitutivityRule	(	const Expr &	e,
		const std::vector< unsigned > &	changed,
		const std::vector< Theorem > &	thms
	)		`[inline]`

Optimized: only positions which changed are included.

Definition at line 702 of file theory.h.

References d_commonRules, and CVC3::CommonProofRules::substitutivityRule().

Theorem CVC3::Theory::substitutivityRule	(	const Expr &	e,
		int	changed,
		const Theorem &	thm
	)		`[inline]`

Optimized: only a single position changed.

Definition at line 708 of file theory.h.

References d_commonRules, and CVC3::CommonProofRules::substitutivityRule().

Theorem CVC3::Theory::iffMP	(	const Theorem &	e1,
		const Theorem &	e1_iff_e2
	)		`[inline]`

e1 AND (e1 IFF e2) ==> e2

Definition at line 714 of file theory.h.

References d_commonRules, and CVC3::CommonProofRules::iffMP().

Theorem CVC3::Theory::rewriteAnd ( const Expr & e ) [inline]

==> AND(e1,e2) IFF [simplified expr]

Definition at line 719 of file theory.h.

References d_commonRules, and CVC3::CommonProofRules::rewriteAnd().

Referenced by CVC3::TheoryUF::computeTCC(), CVC3::TheorySimulate::computeTCC(), CVC3::TheoryRecords::computeTCC(), CVC3::TheoryCore::computeTCC(), CVC3::TheoryArray::computeTCC(), CVC3::TheoryCore::rewrite(), and CVC3::TheoryCore::simplifyOp().

Theorem CVC3::Theory::rewriteOr ( const Expr & e ) [inline]

==> OR(e1,...,en) IFF [simplified expr]

Definition at line 724 of file theory.h.

References d_commonRules, and CVC3::CommonProofRules::rewriteOr().

Referenced by CVC3::TheoryCore::computeTCC(), CVC3::TheoryCore::rewrite(), and CVC3::TheoryCore::simplifyOp().

Theorem Theory::rewriteIte ( const Expr & e )

Derived rule for rewriting ITE.

Definition at line 923 of file theory.cpp.

References d_commonRules, reflexivityRule(), CVC3::CommonProofRules::rewriteIteFalse(), CVC3::CommonProofRules::rewriteIteSame(), and CVC3::CommonProofRules::rewriteIteTrue().

Referenced by CVC3::TheoryArray::checkSat(), and CVC3::TheoryCore::rewrite().

Theorem Theory::renameExpr ( const Expr & e )

Derived rule to create a new name for an expression.

Definition at line 935 of file theory.cpp.

References CVC3::TheoryCore::addToVarDB(), d_commonRules, d_theoryCore, DebugAssert, CVC3::Theorem::getRHS(), CVC3::Theorem::isRewrite(), CVC3::Expr::isSkolem(), CVC3::Theorem::toString(), and CVC3::CommonProofRules::varIntroSkolem().

Referenced by CVC3::TheoryBitvector::update(), and CVC3::TheoryArray::update().

Friends And Related Function Documentation

friend class TheoryCore [friend]

Definition at line 65 of file theory.h.

Member Data Documentation

ExprManager* CVC3::Theory::d_em [private]

Definition at line 67 of file theory.h.

Referenced by CVC3::TheoryCore::assertEqualities(), boolType(), CVC3::TheoryCore::buildModel(), CVC3::TheoryCore::computeModelBasic(), CVC3::TheoryCore::computeType(), falseExpr(), getEM(), newSubtypeExpr(), newVar(), CVC3::TheoryCore::print(), CVC3::TheoryCore::refineCounterExample(), CVC3::TheoryCore::TheoryCore(), trueExpr(), and CVC3::TheoryCore::~TheoryCore().

TheoryCore* CVC3::Theory::d_theoryCore [private]

Provides the core functionality.

Definition at line 68 of file theory.h.

Referenced by addBoundVar(), addGlobalLemma(), addSplitter(), assertEqualities(), assignValue(), enqueueFact(), enqueueSE(), CVC3::TheoryCore::getAssignment(), getModelValue(), getNumTheories(), getTCC(), CVC3::TheoryCore::getValue(), hasTheory(), inconsistent(), installID(), newFunction(), newSubtypeExpr(), newVar(), parseExpr(), registerAtom(), registerKinds(), registerTheory(), renameExpr(), resolveID(), setIncomplete(), setInconsistent(), simplify(), simplifyOp(), CVC3::TheoryCore::TheoryCore(), theoryCore(), theoryOf(), typePred(), unregisterKinds(), and unregisterTheory().

CommonProofRules* CVC3::Theory::d_commonRules [private]

Commonly used proof rules.

Definition at line 69 of file theory.h.

Referenced by CVC3::TheoryCore::assertEqualities(), CVC3::TheoryCore::checkSolved(), computeTCC(), findReduce(), getCommonRules(), iffMP(), reflexivityRule(), CVC3::TheoryCore::registerAtom(), renameExpr(), CVC3::TheoryCore::rewrite(), rewriteAnd(), rewriteIte(), CVC3::TheoryCore::rewriteLiteral(), rewriteOr(), CVC3::TheoryCore::simplifyOp(), simplifyOp(), substitutivityRule(), symmetryRule(), CVC3::TheoryCore::TheoryCore(), transitivityRule(), CVC3::TheoryCore::update(), and updateHelper().

std::string CVC3::Theory::d_name [private]

Name of the theory (for debugging)

Definition at line 70 of file theory.h.

Referenced by getName(), and CVC3::TheoryCore::TheoryCore().

bool CVC3::Theory::d_theoryUsed [protected]

Definition at line 79 of file theory.h.

Referenced by CVC3::TheoryBitvector::parseExprOp(), CVC3::TheoryUF::print(), CVC3::TheorySimulate::print(), CVC3::TheoryRecords::print(), CVC3::TheoryQuant::print(), CVC3::TheoryArray::print(), CVC3::TheoryBitvector::printSmtLibShared(), setUsed(), CVC3::TheoryCore::TheoryCore(), and theoryUsed().

The documentation for this class was generated from the following files:

CVC3::Theory Class ReferenceTheories

Public Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation

CVC3::Theory Class Reference
Theories
