CVC3::Scope Class Reference

#include <context.h>

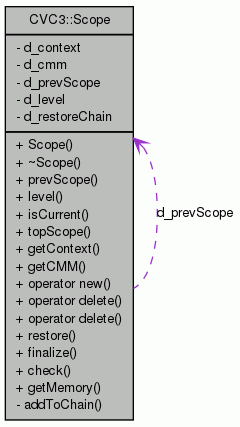

Collaboration diagram for CVC3::Scope:

List of all members.

Public Member Functions

• Scope (Context *context, ContextMemoryManager *cmm, Scope *prevScope=NULL)

  Constructor.


• ~Scope ()

  Destructor.


• Scope * prevScope () const

  Access functions.


• int level (void) const
• bool isCurrent (void) const
• Scope * topScope () const
• Context * getContext () const
• ContextMemoryManager * getCMM () const
• void * operator new (size_t size, MemoryManager *mm)
• void operator delete (void *pMem, MemoryManager *mm)
• void operator delete (void *)
• void restore (void)

  Restore all the values.


• void finalize (void)

  Called by ~ContextManager.


• void check (void)

  Check for memory leaks.


• unsigned long getMemory (int verbosity)

  Compute memory used.


Private Member Functions

• void addToChain (ContextObjChain *obj)

  Called by ContextObj when created.


Private Attributes

• Context * d_context

  Context that created this scope.


• ContextMemoryManager * d_cmm

  Memory manager for this scope.


• Scope * d_prevScope

  Previous scope in this context.


• int d_level

  Scope level.


• ContextObjChain * d_restoreChain

  Linked list of objects which are "current" in this scope, and thus need to be restored when the scope is deleted.


Friends

• class ContextObj
• class ContextObjChain
• class CDFlags

---

Detailed Description

Author: Clark Barrett

Created: Thu Feb 13 00:19:15 2003

A scope encapsulates the portion of a context which has changed since the last call to push(). Thus, when pop() is called, everything in this scope is restored to its previous state.

Definition at line 60 of file context.h.

---

Constructor & Destructor Documentation

CVC3::Scope::Scope	(	Context *	context,
		ContextMemoryManager *	cmm,
		Scope *	prevScope = NULL
	)		[inline]

Constructor.

Definition at line 85 of file context.h.

References d_level, level(), and prevScope().

CVC3::Scope::~Scope

(

)

[inline]

Destructor.

Definition at line 91 of file context.h.

---

Member Function Documentation

Scope* CVC3::Scope::prevScope

(

)

const [inline]

Access functions.

Definition at line 94 of file context.h.

References d_prevScope.

Referenced by CVC3::Context::pop(), Scope(), CVC3::CDFlags::update(), and CVC3::Context::~Context().

int CVC3::Scope::level

(

void

)

const [inline]

Definition at line 95 of file context.h.

References d_level.

Referenced by CVC3::Context::popto(), Scope(), and CVC3::CDFlags::update().

Context* CVC3::Scope::getContext

(

)

const [inline]

Definition at line 98 of file context.h.

References d_context.

ContextMemoryManager* CVC3::Scope::getCMM

(

)

const [inline]

Definition at line 99 of file context.h.

References d_cmm.

Referenced by CVC3::Context::pop(), CVC3::CDFlags::update(), and CVC3::Context::~Context().

void* CVC3::Scope::operator new	(	size_t	size,
		MemoryManager *	mm
	)		[inline]

Definition at line 101 of file context.h.

References CVC3::MemoryManager::newData().

void CVC3::Scope::operator delete	(	void *	pMem,
		MemoryManager *	mm
	)		[inline]

Definition at line 103 of file context.h.

References CVC3::MemoryManager::deleteData().

void CVC3::Scope::operator delete

(

void *

)

[inline]

Definition at line 106 of file context.h.

void Scope::finalize

(

void

)

Called by ~ContextManager.

Definition at line 37 of file context.cpp.

References CVC3::ContextObjChain::d_master, CVC3::ContextObj::d_restore, CVC3::ContextObjChain::d_restoreChainNext, and CVC3::ContextObj::d_scope.

Referenced by CVC3::Context::~Context().

void Scope::check

(

void

)

Check for memory leaks.

Definition at line 55 of file context.cpp.

References CVC3::ContextObjChain::d_restoreChainNext, std::endl(), and IF_DEBUG.

Referenced by CVC3::Context::pop().

unsigned long Scope::getMemory

(

int

verbosity

)

Compute memory used.

Definition at line 82 of file context.cpp.

References std::endl().

Referenced by CVC3::Context::getMemory().

---

Friends And Related Function Documentation

friend class ContextObj [friend]

Definition at line 61 of file context.h.

friend class ContextObjChain [friend]

Definition at line 62 of file context.h.

friend class CDFlags [friend]

Definition at line 63 of file context.h.

---

Member Data Documentation

Context* CVC3::Scope::d_context [private]

Context that created this scope.

Definition at line 65 of file context.h.

Referenced by getContext().

ContextMemoryManager* CVC3::Scope::d_cmm [private]

Memory manager for this scope.

Definition at line 68 of file context.h.

Referenced by getCMM().

Scope* CVC3::Scope::d_prevScope [private]

Previous scope in this context.

Definition at line 71 of file context.h.

Referenced by prevScope().

int CVC3::Scope::d_level [private]

Scope level.

Definition at line 74 of file context.h.

Referenced by level(), and Scope().

ContextObjChain* CVC3::Scope::d_restoreChain [private]

Linked list of objects which are "current" in this scope, and thus need to be restored when the scope is deleted.

Definition at line 78 of file context.h.

---

The documentation for this class was generated from the following files:

• context.h
• context.cpp
