CVC3::CommonTheoremProducer Class Reference

#include <common_theorem_producer.h>

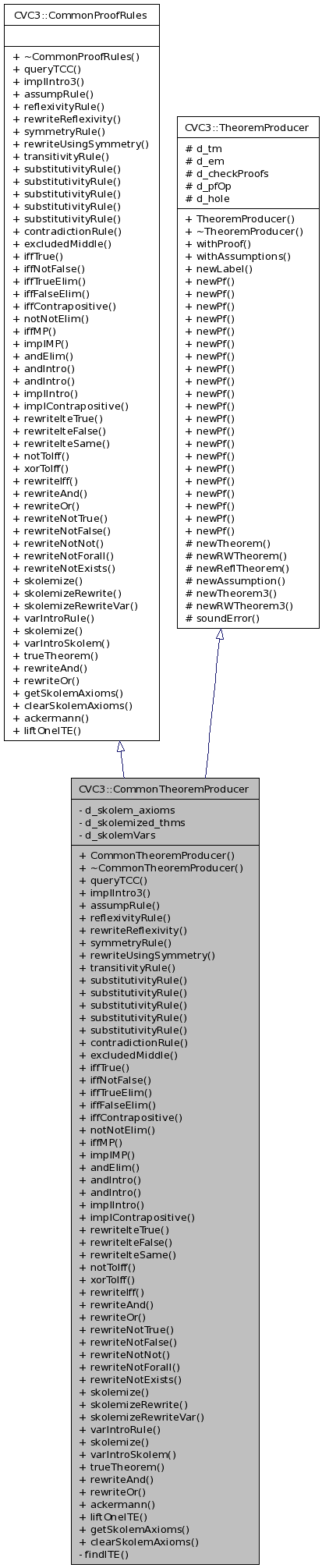

Inheritance diagram for CVC3::CommonTheoremProducer:

Inheritance graph
[legend]
Collaboration diagram for CVC3::CommonTheoremProducer:

Collaboration graph
[legend]
List of all members.

Public Member Functions

Private Member Functions

Private Attributes


Detailed Description

Definition at line 40 of file common_theorem_producer.h.


Constructor & Destructor Documentation

CommonTheoremProducer::CommonTheoremProducer ( TheoremManager tm  )

Definition at line 40 of file common_theorem_producer.cpp.

virtual CVC3::CommonTheoremProducer::~CommonTheoremProducer (  )  [inline, virtual]

Definition at line 60 of file common_theorem_producer.h.


Member Function Documentation

void CommonTheoremProducer::findITE ( const Expr e,
Expr condition,
Expr thenpart,
Expr elsepart
) [private]

Helper function for liftOneITE.

Definition at line 1322 of file common_theorem_producer.cpp.

References CVC3::Expr::arity(), CHECK_PROOFS, CHECK_SOUND, CVC3::Expr::containsTermITE(), CVC3::Expr::getOp(), CVC3::Expr::getType(), CVC3::Type::isBool(), and CVC3::Expr::isITE().

Referenced by liftOneITE().

Theorem3 CommonTheoremProducer::queryTCC ( const Theorem phi,
const Theorem D_phi
) [virtual]

Convert 2-valued formula to 3-valued by discharging its TCC ($D_\phi$):

\[\frac{\Gamma_1\vdash_2 \phi\quad \Gamma_2\vdash_2 D_{\phi}} {\Gamma_1,\,\Gamma_2\vdash_3\phi}\]

.

Implements CVC3::CommonProofRules.

Definition at line 55 of file common_theorem_producer.cpp.

References CVC3::Assumptions::add(), CVC3::Theorem::getAssumptionsRef(), CVC3::Theorem::getExpr(), CVC3::Theorem::getProof(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newTheorem3(), and CVC3::TheoremProducer::withProof().

Theorem3 CommonTheoremProducer::implIntro3 ( const Theorem3 phi,
const std::vector< Expr > &  assump,
const std::vector< Theorem > &  tccs
) [virtual]

3-valued implication introduction rule:

\[\frac{\Gamma_0,\,\alpha_1\,\ldots,\,\alpha_n\vdash_3\phi\quad (\Gamma_i\vdash D_{\alpha_i})_{i\in[1..n]}} {\Gamma_0,\,\Gamma_1, \ldots, \Gamma_n\vdash_3 (\bigwedge_{i=1}^n\alpha_i)\to\phi}\]

Parameters:
phi is the formula $\phi$
assump is the vector of assumptions $\alpha_1\ldots\alpha_n$
tccs is the vector of TCCs for assumptions $D_{\alpha_1}\ldots D_{\alpha_n}$

Implements CVC3::CommonProofRules.

Definition at line 85 of file common_theorem_producer.cpp.

References CVC3::Assumptions::add(), CVC3::andExpr(), CHECK_PROOFS, CHECK_SOUND, CVC3::Theorem3::getAssumptionsRef(), CVC3::Theorem3::getExpr(), CVC3::Theorem3::getProof(), CVC3::Expr::impExpr(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newTheorem3(), CVC3::Expr::toString(), CVC3::TheoremProducer::withAssumptions(), and CVC3::TheoremProducer::withProof().

Theorem CommonTheoremProducer::assumpRule ( const Expr a,
int  scope = -1
) [virtual]

\[\frac{}{a\vdash a}\]

Implements CVC3::CommonProofRules.

Definition at line 154 of file common_theorem_producer.cpp.

References CVC3::TheoremProducer::newAssumption(), CVC3::TheoremProducer::newLabel(), and CVC3::TheoremProducer::withProof().

Theorem CommonTheoremProducer::reflexivityRule ( const Expr a  )  [virtual]

\[\frac{}{a = a}\quad or \quad\frac{}{a \Leftrightarrow a}\]

Implements CVC3::CommonProofRules.

Definition at line 162 of file common_theorem_producer.cpp.

References CVC3::TheoremProducer::newReflTheorem().

Referenced by rewriteIff(), rewriteUsingSymmetry(), substitutivityRule(), symmetryRule(), transitivityRule(), and trueTheorem().

Theorem CommonTheoremProducer::rewriteReflexivity ( const Expr a_eq_a  )  [virtual]

==> (a == a) IFF TRUE

Implements CVC3::CommonProofRules.

Definition at line 168 of file common_theorem_producer.cpp.

References CHECK_PROOFS, CHECK_SOUND, CVC3::TheoremProducer::d_em, DebugAssert, CVC3::Assumptions::emptyAssump(), CVC3::Expr::isEq(), CVC3::Expr::isIff(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newRWTheorem(), CVC3::Expr::toString(), CVC3::ExprManager::trueExpr(), and CVC3::TheoremProducer::withProof().

Referenced by rewriteIff().

Theorem CommonTheoremProducer::symmetryRule ( const Theorem a1_eq_a2  )  [virtual]

\[\frac{a_1=a_2}{a_2=a_1}\]

(same for IFF)

Implements CVC3::CommonProofRules.

Definition at line 187 of file common_theorem_producer.cpp.

References CHECK_PROOFS, CHECK_SOUND, CVC3::Type::getExpr(), CVC3::Theorem::getExpr(), CVC3::Theorem::getLHS(), CVC3::Theorem::getProof(), CVC3::Theorem::getRHS(), CVC3::Expr::getType(), IF_DEBUG, CVC3::Type::isBool(), CVC3::Theorem::isRewrite(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newRWTheorem(), reflexivityRule(), CVC3::Expr::toString(), and CVC3::TheoremProducer::withProof().

Theorem CommonTheoremProducer::rewriteUsingSymmetry ( const Expr a1_eq_a2  )  [virtual]

\[\frac{}{(a_1=a_2)\Leftrightarrow (a_2=a_1)}\]

Implements CVC3::CommonProofRules.

Definition at line 221 of file common_theorem_producer.cpp.

References CHECK_PROOFS, CHECK_SOUND, DebugAssert, CVC3::Assumptions::emptyAssump(), CVC3::Expr::eqExpr(), CVC3::Type::getExpr(), CVC3::Expr::iffExpr(), CVC3::Expr::isEq(), CVC3::Expr::isIff(), CVC3::Type::isNull(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newRWTheorem(), reflexivityRule(), and CVC3::TheoremProducer::withProof().

Referenced by rewriteIff().

Theorem CommonTheoremProducer::transitivityRule ( const Theorem a1_eq_a2,
const Theorem a2_eq_a3
) [virtual]

\[\frac{a_1=a_2\quad a_2=a_3}{a_1=a_3}\]

(same for IFF)

Implements CVC3::CommonProofRules.

Definition at line 245 of file common_theorem_producer.cpp.

References CHECK_PROOFS, CHECK_SOUND, DebugAssert, CVC3::Type::getExpr(), CVC3::Theorem::getExpr(), CVC3::Theorem::getLHS(), CVC3::Theorem::getProof(), CVC3::Theorem::getRHS(), CVC3::Type::isBool(), CVC3::Type::isNull(), CVC3::Theorem::isNull(), CVC3::Theorem::isRewrite(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newRWTheorem(), reflexivityRule(), CVC3::Expr::toString(), and CVC3::TheoremProducer::withProof().

Theorem CommonTheoremProducer::substitutivityRule ( const Expr e,
const Theorem thm
) [virtual]

Optimized case for expr with one child.

Implements CVC3::CommonProofRules.

Definition at line 302 of file common_theorem_producer.cpp.

References CVC3::Expr::arity(), CHECK_PROOFS, CHECK_SOUND, CVC3::Theorem::getExpr(), CVC3::Theorem::getLHS(), CVC3::Expr::getOp(), CVC3::Theorem::getProof(), CVC3::Theorem::getRHS(), IF_DEBUG, CVC3::Theorem::isRewrite(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newRWTheorem(), CVC3::Expr::toString(), and CVC3::TheoremProducer::withProof().

Referenced by substitutivityRule().

Theorem CommonTheoremProducer::substitutivityRule ( const Expr e,
const Theorem thm1,
const Theorem thm2
) [virtual]

Optimized case for expr with two children.

Implements CVC3::CommonProofRules.

Definition at line 332 of file common_theorem_producer.cpp.

References CVC3::Expr::arity(), CHECK_PROOFS, CHECK_SOUND, CVC3::Theorem::getExpr(), CVC3::Theorem::getLHS(), CVC3::Expr::getOp(), CVC3::Theorem::getProof(), CVC3::Theorem::getRHS(), IF_DEBUG, CVC3::Theorem::isRefl(), CVC3::Theorem::isRewrite(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newRWTheorem(), CVC3::Theorem::setSubst(), CVC3::Expr::toString(), and CVC3::TheoremProducer::withProof().

Theorem CommonTheoremProducer::substitutivityRule ( const Op op,
const std::vector< Theorem > &  thms
) [virtual]

\[\frac{(c_1=d_1)\wedge\ldots\wedge(c_n=d_n)} {op(c_1,\ldots,c_n)=op(d_1,\ldots,d_n)}\]

Implements CVC3::CommonProofRules.

Definition at line 373 of file common_theorem_producer.cpp.

References CHECK_PROOFS, CHECK_SOUND, CVC3::TheoremProducer::d_tm, CVC3::TheoremManager::getEM(), IF_DEBUG, CVC3::ExprManager::newLeafExpr(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newRWTheorem(), reflexivityRule(), CVC3::Theorem::setSubst(), CVC3::Op::toString(), and CVC3::TheoremProducer::withProof().

Theorem CommonTheoremProducer::substitutivityRule ( const Expr e,
const std::vector< unsigned > &  changed,
const std::vector< Theorem > &  thms
) [virtual]

\[\frac{(c_1=d_1)\wedge\ldots\wedge(c_n=d_n)} {op(c_1,\ldots,c_n)=op(d_1,\ldots,d_n)}\]

except that only those arguments are given that $c_i\not=d_i$.

Parameters:
e is the original expression $op(c_1,\ldots,c_n)$.
changed is the vector of indices of changed kids
thms are the theorems $c_i=d_i$ for the changed kids.

Implements CVC3::CommonProofRules.

Definition at line 424 of file common_theorem_producer.cpp.

References CVC3::Expr::arity(), CHECK_PROOFS, CHECK_SOUND, DebugAssert, CVC3::Expr::getOp(), IF_DEBUG, CVC3::Theorem::isRefl(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newRWTheorem(), reflexivityRule(), CVC3::Theorem::setSubst(), substitutivityRule(), CVC3::Expr::toString(), and CVC3::TheoremProducer::withProof().

Theorem CommonTheoremProducer::substitutivityRule ( const Expr e,
const int  changed,
const Theorem thm
) [virtual]

Implements CVC3::CommonProofRules.

Definition at line 509 of file common_theorem_producer.cpp.

References CVC3::Expr::arity(), CHECK_PROOFS, CHECK_SOUND, DebugAssert, std::endl(), CVC3::Theorem::getExpr(), CVC3::Theorem::getLHS(), CVC3::Expr::getOp(), CVC3::Theorem::getProof(), CVC3::Theorem::getRHS(), IF_DEBUG, CVC3::Theorem::isRewrite(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newRWTheorem(), CVC3::Expr::toString(), and CVC3::TheoremProducer::withProof().

Theorem CommonTheoremProducer::contradictionRule ( const Theorem e,
const Theorem not_e
) [virtual]

\[\frac{\Gamma_1\vdash e\quad\Gamma_2\vdash \neg e} {\Gamma_1\cup\Gamma_2\vdash \mathrm{FALSE}} \]

Implements CVC3::CommonProofRules.

Definition at line 561 of file common_theorem_producer.cpp.

References CHECK_PROOFS, CHECK_SOUND, CVC3::TheoremProducer::d_em, CVC3::ExprManager::falseExpr(), CVC3::Theorem::getExpr(), CVC3::Theorem::getProof(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newTheorem(), CVC3::Theorem::toString(), and CVC3::TheoremProducer::withProof().

Theorem CommonTheoremProducer::excludedMiddle ( const Expr e  )  [virtual]

Implements CVC3::CommonProofRules.

Definition at line 580 of file common_theorem_producer.cpp.

References CVC3::Assumptions::emptyAssump(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newTheorem(), CVC3::Expr::orExpr(), and CVC3::TheoremProducer::withProof().

Theorem CommonTheoremProducer::iffTrue ( const Theorem e  )  [virtual]

\[\frac{\Gamma\vdash e}{\Gamma\vdash e\Leftrightarrow\mathrm{TRUE}}\]

Implements CVC3::CommonProofRules.

Definition at line 591 of file common_theorem_producer.cpp.

References CVC3::TheoremProducer::d_em, CVC3::Theorem::getExpr(), CVC3::Theorem::getProof(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newRWTheorem(), CVC3::ExprManager::trueExpr(), and CVC3::TheoremProducer::withProof().

Theorem CommonTheoremProducer::iffNotFalse ( const Theorem e  )  [virtual]

\[\frac{\Gamma\vdash e}{\Gamma\vdash\neg e\Leftrightarrow\mathrm{FALSE}}\]

Implements CVC3::CommonProofRules.

Definition at line 602 of file common_theorem_producer.cpp.

References CVC3::TheoremProducer::d_em, CVC3::ExprManager::falseExpr(), CVC3::Theorem::getExpr(), CVC3::Theorem::getProof(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newRWTheorem(), and CVC3::TheoremProducer::withProof().

Theorem CommonTheoremProducer::iffTrueElim ( const Theorem e  )  [virtual]

\[\frac{\Gamma\vdash e\Leftrightarrow\mathrm{TRUE}}{\Gamma\vdash e}\]

Implements CVC3::CommonProofRules.

Definition at line 612 of file common_theorem_producer.cpp.

References CHECK_PROOFS, CHECK_SOUND, CVC3::Theorem::getLHS(), CVC3::Theorem::getProof(), CVC3::Theorem::getRHS(), CVC3::Theorem::isRewrite(), CVC3::Expr::isTrue(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newTheorem(), CVC3::Theorem::toString(), and CVC3::TheoremProducer::withProof().

Referenced by trueTheorem().

Theorem CommonTheoremProducer::iffFalseElim ( const Theorem e  )  [virtual]

\[\frac{\Gamma\vdash e\Leftrightarrow\mathrm{FALSE}}{\Gamma\vdash\neg e}\]

Implements CVC3::CommonProofRules.

Definition at line 626 of file common_theorem_producer.cpp.

References CHECK_PROOFS, CHECK_SOUND, CVC3::Theorem::getLHS(), CVC3::Theorem::getProof(), CVC3::Theorem::getRHS(), CVC3::Expr::isFalse(), CVC3::Theorem::isRewrite(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newTheorem(), CVC3::Theorem::toString(), and CVC3::TheoremProducer::withProof().

Theorem CommonTheoremProducer::iffContrapositive ( const Theorem thm  )  [virtual]

e1 <=> e2 ==> ~e1 <=> ~e2

\[\frac{\Gamma\vdash e_1\Leftrightarrow e_2} {\Gamma\vdash\sim e_1\Leftrightarrow\sim e_2}\]

Where ~e is the inverse of e (that is, ~(!e') = e').

Implements CVC3::CommonProofRules.

Definition at line 641 of file common_theorem_producer.cpp.

References CHECK_PROOFS, CHECK_SOUND, CVC3::Theorem::getExpr(), CVC3::Theorem::getLHS(), CVC3::Theorem::getProof(), CVC3::Theorem::getRHS(), CVC3::Expr::getType(), CVC3::Type::isBool(), CVC3::Theorem::isRewrite(), CVC3::Expr::negate(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newRWTheorem(), CVC3::Theorem::toString(), and CVC3::TheoremProducer::withProof().

Theorem CommonTheoremProducer::notNotElim ( const Theorem not_not_e  )  [virtual]

\[\frac{\Gamma\vdash\neg\neg e}{\Gamma\vdash e}\]

Implements CVC3::CommonProofRules.

Definition at line 655 of file common_theorem_producer.cpp.

References CHECK_PROOFS, CHECK_SOUND, CVC3::Theorem::getExpr(), CVC3::Theorem::getProof(), CVC3::Expr::isNot(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newTheorem(), CVC3::Theorem::toString(), and CVC3::TheoremProducer::withProof().

Theorem CommonTheoremProducer::iffMP ( const Theorem e1,
const Theorem e1_iff_e2
) [virtual]

\[\frac{\Gamma_1\vdash e_1\quad \Gamma_2\vdash(e_1\Leftrightarrow e_2)} {\Gamma_1\cup\Gamma_2\vdash e_2} \]

Implements CVC3::CommonProofRules.

Definition at line 667 of file common_theorem_producer.cpp.

References CHECK_PROOFS, CHECK_SOUND, CVC3::Theorem::getExpr(), CVC3::Theorem::getLHS(), CVC3::Theorem::getProof(), CVC3::Theorem::getRHS(), CVC3::Theorem::isRewrite(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newTheorem(), CVC3::Theorem::toString(), and CVC3::TheoremProducer::withProof().

Referenced by rewriteAnd(), rewriteOr(), skolemize(), and varIntroSkolem().

Theorem CommonTheoremProducer::implMP ( const Theorem e1,
const Theorem e1_impl_e2
) [virtual]

\[\frac{\Gamma_1\vdash e_1\quad \Gamma_2\vdash(e_1\Rightarrow e_2)} {\Gamma_1\cup\Gamma_2\vdash e_2} \]

Implements CVC3::CommonProofRules.

Definition at line 692 of file common_theorem_producer.cpp.

References CVC3::Expr::arity(), CHECK_PROOFS, CHECK_SOUND, CVC3::Theorem::getExpr(), CVC3::Theorem::getProof(), CVC3::Expr::isImpl(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newTheorem(), CVC3::Theorem::toString(), CVC3::Expr::toString(), and CVC3::TheoremProducer::withProof().

Theorem CommonTheoremProducer::andElim ( const Theorem e,
int  i
) [virtual]

\[\frac{\vdash e_1\wedge\cdots\wedge e_n}{\vdash e_i}\]

Implements CVC3::CommonProofRules.

Definition at line 718 of file common_theorem_producer.cpp.

References CVC3::Expr::arity(), CHECK_PROOFS, CHECK_SOUND, CVC3::TheoremProducer::d_em, CVC3::Theorem::getExpr(), CVC3::Theorem::getProof(), CVC3::Expr::isAnd(), CVC3::TheoremProducer::newPf(), CVC3::ExprManager::newRatExpr(), CVC3::TheoremProducer::newTheorem(), CVC3::Theorem::toString(), and CVC3::TheoremProducer::withProof().

Theorem CommonTheoremProducer::andIntro ( const Theorem e1,
const Theorem e2
) [virtual]

e1, e2 ==> AND(e1, e2)

Implements CVC3::CommonProofRules.

Definition at line 733 of file common_theorem_producer.cpp.

Theorem CommonTheoremProducer::andIntro ( const std::vector< Theorem > &  es  )  [virtual]

\[\frac{\Gamma_1\vdash e_1\quad \cdots \quad\Gamma_n\vdash e_n} {\bigcup_{i=1}^n\Gamma_i\vdash \bigwedge_{i=1}^n e_i} \]

Implements CVC3::CommonProofRules.

Definition at line 741 of file common_theorem_producer.cpp.

References CVC3::andExpr(), CHECK_PROOFS, CHECK_SOUND, CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newTheorem(), and CVC3::TheoremProducer::withProof().

Theorem CommonTheoremProducer::implIntro ( const Theorem phi,
const std::vector< Expr > &  assump
) [virtual]

Implication introduction rule:

\[\frac{\Gamma,\,\alpha_1\,\ldots,\,\alpha_n\vdash\phi} {\Gamma\vdash(\bigwedge_{i=1}^n\alpha_i)\to\phi}\]

.

Parameters:
phi is the formula $\phi$
assump is the vector of assumptions $\alpha_1\ldots\alpha_n$

Implements CVC3::CommonProofRules.

Definition at line 775 of file common_theorem_producer.cpp.

References CVC3::andExpr(), CHECK_PROOFS, CHECK_SOUND, CVC3::Theorem::getAssumptionsRef(), CVC3::Theorem::getExpr(), CVC3::Theorem::getProof(), CVC3::Expr::impExpr(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newTheorem(), CVC3::Expr::toString(), CVC3::TheoremProducer::withAssumptions(), and CVC3::TheoremProducer::withProof().

Theorem CommonTheoremProducer::implContrapositive ( const Theorem thm  )  [virtual]

e1 => e2 ==> ~e2 => ~e1

\[\frac{\Gamma\vdash e_1\Rightarrow e_2} {\Gamma\vdash\sim e_2\Rightarrow\sim e_1}\]

Where ~e is the inverse of e (that is, ~(!e') = e').

Implements CVC3::CommonProofRules.

Definition at line 825 of file common_theorem_producer.cpp.

References CVC3::Expr::arity(), CHECK_PROOFS, CHECK_SOUND, CVC3::Theorem::getExpr(), CVC3::Theorem::getProof(), CVC3::Expr::isImpl(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newTheorem(), CVC3::Expr::toString(), and CVC3::TheoremProducer::withProof().

Theorem CommonTheoremProducer::rewriteIteTrue ( const Expr e  )  [virtual]

==> ITE(TRUE, e1, e2) == e1

Implements CVC3::CommonProofRules.

Definition at line 841 of file common_theorem_producer.cpp.

References CHECK_PROOFS, CHECK_SOUND, DebugAssert, CVC3::Assumptions::emptyAssump(), CVC3::Type::getExpr(), CVC3::Expr::getType(), CVC3::Type::isBool(), CVC3::Expr::isITE(), CVC3::Type::isNull(), CVC3::Expr::isTrue(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newRWTheorem(), CVC3::Expr::toString(), and CVC3::TheoremProducer::withProof().

Theorem CommonTheoremProducer::rewriteIteFalse ( const Expr e  )  [virtual]

==> ITE(FALSE, e1, e2) == e2

Implements CVC3::CommonProofRules.

Definition at line 863 of file common_theorem_producer.cpp.

References CHECK_PROOFS, CHECK_SOUND, DebugAssert, CVC3::Assumptions::emptyAssump(), CVC3::Type::getExpr(), CVC3::Expr::getType(), CVC3::Type::isBool(), CVC3::Expr::isFalse(), CVC3::Expr::isITE(), CVC3::Type::isNull(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newRWTheorem(), CVC3::Expr::toString(), and CVC3::TheoremProducer::withProof().

Theorem CommonTheoremProducer::rewriteIteSame ( const Expr e  )  [virtual]

==> ITE(c, e, e) == e

Implements CVC3::CommonProofRules.

Definition at line 885 of file common_theorem_producer.cpp.

References CHECK_PROOFS, CHECK_SOUND, DebugAssert, CVC3::Assumptions::emptyAssump(), CVC3::Type::getExpr(), CVC3::Expr::getType(), CVC3::Type::isBool(), CVC3::Expr::isITE(), CVC3::Type::isNull(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newRWTheorem(), CVC3::Expr::toString(), and CVC3::TheoremProducer::withProof().

Theorem CommonTheoremProducer::notToIff ( const Theorem not_e  )  [virtual]

\[\frac{\vdash\neg e}{\vdash e\Leftrightarrow\mathrm{FALSE}}\]

Implements CVC3::CommonProofRules.

Definition at line 906 of file common_theorem_producer.cpp.

References CHECK_PROOFS, CHECK_SOUND, CVC3::TheoremProducer::d_em, CVC3::ExprManager::falseExpr(), CVC3::Theorem::getExpr(), CVC3::Theorem::getProof(), CVC3::Expr::isNot(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newRWTheorem(), CVC3::Theorem::toString(), and CVC3::TheoremProducer::withProof().

Theorem CommonTheoremProducer::xorToIff ( const Expr e  )  [virtual]

\[\frac{\vdash e_1 XOR e_2}{\vdash e_1\Leftrightarrow(\neg e_2)}\]

Implements CVC3::CommonProofRules.

Definition at line 922 of file common_theorem_producer.cpp.

References CVC3::Expr::arity(), CHECK_PROOFS, CHECK_SOUND, CVC3::Assumptions::emptyAssump(), CVC3::Expr::iffExpr(), CVC3::Expr::isXor(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newRWTheorem(), and CVC3::TheoremProducer::withProof().

Theorem CommonTheoremProducer::rewriteIff ( const Expr e  )  [virtual]

==> (e1 <=> e2) <=> [simplified expr]

Rewrite formulas like FALSE/TRUE <=> e, e <=> NOT e, etc.

Implements CVC3::CommonProofRules.

Definition at line 941 of file common_theorem_producer.cpp.

References CHECK_PROOFS, CHECK_SOUND, CVC3::TheoremProducer::d_em, CVC3::Assumptions::emptyAssump(), CVC3::FALSE_EXPR, CVC3::ExprManager::falseExpr(), CVC3::Expr::isIff(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newRWTheorem(), CVC3::NOT, reflexivityRule(), rewriteReflexivity(), rewriteUsingSymmetry(), CVC3::TRUE_EXPR, and CVC3::TheoremProducer::withProof().

Theorem CommonTheoremProducer::rewriteAnd ( const Expr e  )  [virtual]

==> AND(e1,e2) IFF [simplified expr]

Implements CVC3::CommonProofRules.

Definition at line 989 of file common_theorem_producer.cpp.

References CVC3::andExpr(), CVC3::ExprMap< Data >::begin(), CVC3::Expr::begin(), CHECK_PROOFS, CHECK_SOUND, CVC3::ExprMap< Data >::count(), CVC3::TheoremProducer::d_em, CVC3::Assumptions::emptyAssump(), CVC3::ExprMap< Data >::end(), CVC3::Expr::end(), CVC3::ExprManager::falseExpr(), CVC3::Expr::isAnd(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newRWTheorem(), CVC3::ExprMap< Data >::size(), CVC3::Expr::toString(), CVC3::ExprManager::trueExpr(), and CVC3::TheoremProducer::withProof().

Referenced by rewriteAnd().

Theorem CommonTheoremProducer::rewriteOr ( const Expr e  )  [virtual]

==> OR(e1,...,en) IFF [simplified expr]

Implements CVC3::CommonProofRules.

Definition at line 1028 of file common_theorem_producer.cpp.

References CVC3::ExprMap< Data >::begin(), CVC3::Expr::begin(), CHECK_PROOFS, CHECK_SOUND, CVC3::ExprMap< Data >::count(), CVC3::TheoremProducer::d_em, CVC3::Assumptions::emptyAssump(), CVC3::ExprMap< Data >::end(), CVC3::Expr::end(), CVC3::ExprManager::falseExpr(), CVC3::Expr::isOr(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newRWTheorem(), CVC3::orExpr(), CVC3::ExprMap< Data >::size(), CVC3::Expr::toString(), CVC3::ExprManager::trueExpr(), and CVC3::TheoremProducer::withProof().

Referenced by rewriteOr().

Theorem CommonTheoremProducer::rewriteNotTrue ( const Expr e  )  [virtual]

==> NOT TRUE IFF FALSE

Implements CVC3::CommonProofRules.

Definition at line 1066 of file common_theorem_producer.cpp.

References CHECK_PROOFS, CHECK_SOUND, CVC3::TheoremProducer::d_em, CVC3::Assumptions::emptyAssump(), CVC3::ExprManager::falseExpr(), CVC3::Expr::isNot(), CVC3::Expr::isTrue(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newRWTheorem(), and CVC3::TheoremProducer::withProof().

Theorem CommonTheoremProducer::rewriteNotFalse ( const Expr e  )  [virtual]

==> NOT FALSE IFF TRUE

Implements CVC3::CommonProofRules.

Definition at line 1078 of file common_theorem_producer.cpp.

References CHECK_PROOFS, CHECK_SOUND, CVC3::TheoremProducer::d_em, CVC3::Assumptions::emptyAssump(), CVC3::Expr::isFalse(), CVC3::Expr::isNot(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newRWTheorem(), CVC3::ExprManager::trueExpr(), and CVC3::TheoremProducer::withProof().

Theorem CommonTheoremProducer::rewriteNotNot ( const Expr e  )  [virtual]

==> NOT NOT e IFF e, takes !!e

Implements CVC3::CommonProofRules.

Definition at line 1090 of file common_theorem_producer.cpp.

References CHECK_PROOFS, CHECK_SOUND, CVC3::Assumptions::emptyAssump(), CVC3::Expr::isNot(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newRWTheorem(), and CVC3::TheoremProducer::withProof().

Theorem CommonTheoremProducer::rewriteNotForall ( const Expr forallExpr  )  [virtual]

==> NOT FORALL (vars): e IFF EXISTS (vars) NOT e

Implements CVC3::CommonProofRules.

Definition at line 1102 of file common_theorem_producer.cpp.

References CHECK_PROOFS, CHECK_SOUND, CVC3::TheoremProducer::d_em, CVC3::Assumptions::emptyAssump(), CVC3::EXISTS, CVC3::Expr::getBody(), CVC3::Expr::getVars(), CVC3::Expr::isForall(), CVC3::Expr::isNot(), CVC3::ExprManager::newClosureExpr(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newRWTheorem(), CVC3::Expr::toString(), and CVC3::TheoremProducer::withProof().

Theorem CommonTheoremProducer::rewriteNotExists ( const Expr existsExpr  )  [virtual]

==> NOT EXISTS (vars): e IFF FORALL (vars) NOT e

Implements CVC3::CommonProofRules.

Definition at line 1117 of file common_theorem_producer.cpp.

References CHECK_PROOFS, CHECK_SOUND, CVC3::TheoremProducer::d_em, CVC3::Assumptions::emptyAssump(), CVC3::FORALL, CVC3::Expr::getBody(), CVC3::Expr::getVars(), CVC3::Expr::isExists(), CVC3::Expr::isNot(), CVC3::ExprManager::newClosureExpr(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newRWTheorem(), CVC3::Expr::toString(), and CVC3::TheoremProducer::withProof().

Expr CommonTheoremProducer::skolemize ( const Expr e  )  [virtual]

Implements CVC3::CommonProofRules.

Definition at line 1131 of file common_theorem_producer.cpp.

References CVC3::Expr::getBody(), CVC3::Expr::getVars(), CVC3::Expr::skolemExpr(), and CVC3::Expr::substExpr().

Referenced by skolemizeRewrite().

Theorem CommonTheoremProducer::skolemizeRewrite ( const Expr e  )  [virtual]

skolem rewrite rule: Introduces axiom |- Exists(x) phi(x) <=> phi(c) where c is a constant defined by the expression Exists(x) phi(x)

Implements CVC3::CommonProofRules.

Definition at line 1145 of file common_theorem_producer.cpp.

References CHECK_PROOFS, CHECK_SOUND, CVC3::Assumptions::emptyAssump(), CVC3::Expr::iffExpr(), CVC3::Expr::isExists(), CVC3::TheoremProducer::newLabel(), CVC3::TheoremProducer::newRWTheorem(), skolemize(), CVC3::Expr::toString(), CVC3::TRACE, and CVC3::TheoremProducer::withProof().

Referenced by skolemize().

Theorem CommonTheoremProducer::skolemizeRewriteVar ( const Expr e  )  [virtual]

Special version of skolemizeRewrite for "EXISTS x. t = x".

Implements CVC3::CommonProofRules.

Definition at line 1165 of file common_theorem_producer.cpp.

References CHECK_PROOFS, CHECK_SOUND, CVC3::Assumptions::emptyAssump(), CVC3::Expr::getBody(), CVC3::Expr::getOp(), CVC3::Expr::getVars(), CVC3::Expr::iffExpr(), CVC3::Expr::isEq(), CVC3::Expr::isExists(), CVC3::Expr::isIff(), CVC3::TheoremProducer::newLabel(), CVC3::TheoremProducer::newRWTheorem(), CVC3::Expr::skolemExpr(), CVC3::Expr::toString(), and CVC3::TheoremProducer::withProof().

Referenced by varIntroSkolem().

Theorem CommonTheoremProducer::varIntroRule ( const Expr e  )  [virtual]

|- EXISTS x. e = x

Implements CVC3::CommonProofRules.

Definition at line 1202 of file common_theorem_producer.cpp.

References CVC3::TheoremProducer::d_em, CVC3::Assumptions::emptyAssump(), CVC3::Expr::eqExpr(), CVC3::EXISTS, CVC3::Expr::getType(), CVC3::Expr::iffExpr(), CVC3::Type::isBool(), CVC3::ExprManager::newBoundVarExpr(), CVC3::ExprManager::newClosureExpr(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newTheorem(), and CVC3::TheoremProducer::withProof().

Referenced by varIntroSkolem().

Theorem CommonTheoremProducer::skolemize ( const Theorem thm  )  [virtual]

If thm is (EXISTS x: phi(x)), create the Skolemized version and add it to the database. Otherwise returns just thm.

Parameters:
thm is the Theorem(EXISTS x: phi(x))

Implements CVC3::CommonProofRules.

Definition at line 1223 of file common_theorem_producer.cpp.

References d_skolem_axioms, d_skolemized_thms, CVC3::CDMap< Key, Data, HashFcn >::end(), CVC3::CDMap< Key, Data, HashFcn >::find(), CVC3::Theorem::getExpr(), CVC3::Expr::getVars(), iffMP(), CVC3::CDMap< Key, Data, HashFcn >::insert(), CVC3::Expr::isExists(), CVC3::Expr::skolemExpr(), skolemizeRewrite(), and CVC3::TRACE.

Theorem CommonTheoremProducer::varIntroSkolem ( const Expr e  )  [virtual]

Retrun a theorem "|- e = v" for a new Skolem constant v.

This is equivalent to skolemize(d_core->varIntroRule(e)), only more efficient.

Implements CVC3::CommonProofRules.

Definition at line 1250 of file common_theorem_producer.cpp.

References d_skolem_axioms, d_skolemized_thms, d_skolemVars, DebugAssert, CVC3::CDMap< Key, Data, HashFcn >::end(), CVC3::CDMap< Key, Data, HashFcn >::find(), CVC3::Theorem::getExpr(), CVC3::Expr::getVars(), iffMP(), CVC3::CDMap< Key, Data, HashFcn >::insert(), CVC3::Expr::isExists(), skolemizeRewriteVar(), CVC3::Expr::toString(), and varIntroRule().

Theorem CommonTheoremProducer::trueTheorem (  )  [virtual]

==> TRUE

Implements CVC3::CommonProofRules.

Definition at line 1280 of file common_theorem_producer.cpp.

References CVC3::TheoremProducer::d_em, iffTrueElim(), reflexivityRule(), and CVC3::ExprManager::trueExpr().

Theorem CommonTheoremProducer::rewriteAnd ( const Theorem e  )  [virtual]

AND(e1,e2) ==> [simplified expr].

Implements CVC3::CommonProofRules.

Definition at line 1286 of file common_theorem_producer.cpp.

References CVC3::Theorem::getExpr(), iffMP(), and rewriteAnd().

Theorem CommonTheoremProducer::rewriteOr ( const Theorem e  )  [virtual]

OR(e1,...,en) ==> [simplified expr].

Implements CVC3::CommonProofRules.

Definition at line 1292 of file common_theorem_producer.cpp.

References CVC3::Theorem::getExpr(), iffMP(), and rewriteOr().

Theorem CommonTheoremProducer::ackermann ( const Expr e1,
const Expr e2
) [virtual]

Implements CVC3::CommonProofRules.

Definition at line 1298 of file common_theorem_producer.cpp.

References CVC3::AND, CVC3::Expr::arity(), CHECK_PROOFS, CHECK_SOUND, CVC3::Assumptions::emptyAssump(), CVC3::Expr::eqExpr(), CVC3::Expr::getOp(), CVC3::Expr::isApply(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newTheorem(), and CVC3::TheoremProducer::withProof().

Theorem CommonTheoremProducer::liftOneITE ( const Expr e  )  [virtual]

Implements CVC3::CommonProofRules.

Definition at line 1359 of file common_theorem_producer.cpp.

References CHECK_PROOFS, CHECK_SOUND, CVC3::Expr::containsTermITE(), CVC3::Assumptions::emptyAssump(), findITE(), CVC3::Expr::iteExpr(), CVC3::TheoremProducer::newPf(), CVC3::TheoremProducer::newRWTheorem(), CVC3::Expr::toString(), and CVC3::TheoremProducer::withProof().

std::vector<Theorem>& CVC3::CommonTheoremProducer::getSkolemAxioms (  )  [inline, virtual]

Implements CVC3::CommonProofRules.

Definition at line 126 of file common_theorem_producer.h.

References d_skolem_axioms.

void CVC3::CommonTheoremProducer::clearSkolemAxioms (  )  [inline, virtual]

Implements CVC3::CommonProofRules.

Definition at line 127 of file common_theorem_producer.h.

References d_skolem_axioms.


Member Data Documentation

std::vector<Theorem> CVC3::CommonTheoremProducer::d_skolem_axioms [private]

Definition at line 46 of file common_theorem_producer.h.

Referenced by clearSkolemAxioms(), getSkolemAxioms(), skolemize(), and varIntroSkolem().

CDMap<Expr, Theorem> CVC3::CommonTheoremProducer::d_skolemized_thms [private]

Definition at line 50 of file common_theorem_producer.h.

Referenced by skolemize(), and varIntroSkolem().

CDMap<Expr, Theorem> CVC3::CommonTheoremProducer::d_skolemVars [private]

Mapping of e to "|- e = v" for fresh Skolem vars v.

Definition at line 53 of file common_theorem_producer.h.

Referenced by varIntroSkolem().


The documentation for this class was generated from the following files:
Generated on Wed Nov 18 16:18:01 2009 for CVC3 by  doxygen 1.5.2
