• Review course, answer questions.
• Apply program design to Automatic Teller Machine
• Review object oriented programming, C++, Java, and visual programming.
• Preview of C part 1 syllabus, next steps.

Structured design, structure charts, data flow diagrams, and data dictionary, files in C, the tabout.c program, databases, SQL, C functions, function arguments, and return types.

Q. What is the "+" used for in the fopen mode "ab+"?

A. The "+" lets you read and write the file. Without the "+" you could only write to the file by appending onto the end of the file.

You get called into your boss' office early one morning.

"Good news" she says, "We got the ATM job. I need you to drop everything you are working on, and take over the project to develop the software for their new machine. There is a meeting in one hour to discuss their requirements. I'm counting on you, good luck."

In the meeting with clients you review the project requirements. You need to defined these issues in the specification:

System Architecture

Client/server

Central server processor

Network interface

Request protocol

Target platform - hardware, ROM disk

Number of clients connected to server

Hardware Interfaces

Receipt printer interface

Video display interface

Keypad interface

Card reader interface

Money dispenser interface

Application Design

Audit log

Transaction rollback

Configuration file to read on startup - contents, greetings, colors

Test routines, test modes

Unjam code

Time and date stamping

Turn machine on/off

Encryption of network traffic

Remote shutdown of machine

Remote status tally of machine from server

Gather statistics about machine usage?

User Interface Design

Main menu

Withdraw funds or balance inquiry

English/Spanish, other languages?

Display advertisements

Network down prompt

Out of cash prompt

Overall process, entry of PIN number

Overall process, addition of individual balance

20's, 10's, others

Limits on withdrawal per day

Print, display, both, balance

Transfer between accounts

Accept deposits? NO

Time out if money dispenser jams

Time out if customer fails to complete sequence

Screen colors

Touch screen

Screen layout

Project Management

Project management - project team

Project schedule

Alpha test, beta test, acceptance test, system integration test

Test plan

Prototype user interface

Try with naïve users (to test interface)

Test boundary conditions

Any others?

In developing the specification and program design, we need to consider who the customers of the ATM machine will be. Beyond that, we need to analyze who are the stakeholders in the project. Who has an interest in the ATM machine, and how it works?

Bank customers, bank managers, bank tellers

Person who loads money into the machine

New York City - security issues, rules

Bank telecommunications department

People trying to steal money from the machine

FDIC, banking regulators

National and international protocol/standard agencies

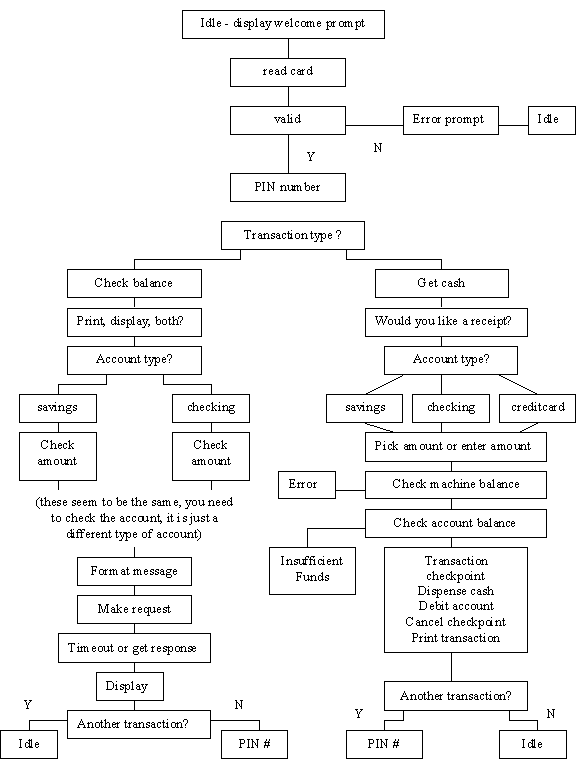

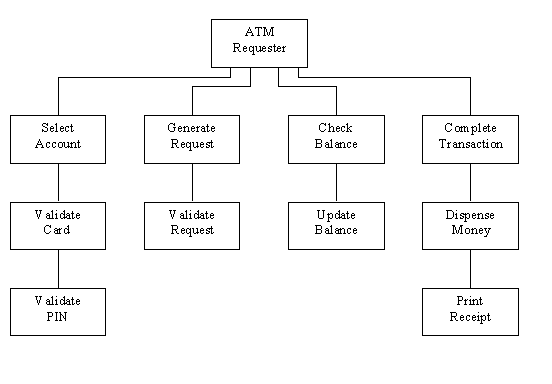

This flowchart shows the sequence of program operations for an ATM machine limited to two types of transactions: check balance and get cash:

Here we determine the layout of the functions required to complete the processing, and the general layout of the program using pseudocode.

main waiting loop

display_welcome_prompt ( )

enter_account ( )

validate_account ( )

enter_pin ( )

validate_pin ( )

enter_transaction ( )

check account balance

get_cash ( )

validate account balance

validate machine balance

debit account

issue cash

Data Design and Data Structures

The data design depends to a large extent on the size and complexity of the program. For a real ATM client, we would be making requests over a computer network to a centralized account database at the bank.

To simplify processing for this program, data for account numbers, pin numbers, and account balances will be stored in arrays. Also, we will restrict account numbers and pin numbers to integer data, even though it may be better handle these numbers as string data.

The array data will be referenced based on using the same index in each array. For example, customer index zero would have an account number of 1000, a PIN number of 1234, and a balance of $500.00.

Here are some highlights from the program.

/**************************************************************

* file name: atm.c

***************************************************************/

#include <stdio.h> /* standard I/O info */

#include <conio.h> /* for clrscr ( ) */

#include <stdlib.h> /* for exit ( ) */

/* ---- constant definitions ---- */

#define SIZE 8 /* size of arrays, number of accounts */

#define WELCOME_PROMPT_1 "Welcome to Megabank"

#define GOODBYE_PROMPT_1 "Thank you for using Megabank"

#define NOT_FOUND -1 /* error value from array search */

#define FOREVER 1 /* for _while_ loop */

/* ---- function prototypes ---- */

void display_account_balance (int account);

void display_diagnostic (void);

void display_goodbye_prompt (void);

void display_welcome_prompt (void);

void get_cash (int account);

int enter_account (void);

int enter_pin (void);

int enter_transaction (void);

int find_account_index (int account, int size);

void issue_cash (float amount);

void pause (void);

int validate_account (int account);

int validate_pin (int pin, int account);

/* ---- global variables ---- */

/* account [ ] is an integer array of valid account numbers */

int account [SIZE] = { 1000, 2000, 3000, 4000,

5000, 6000, 7000, 8000 };

/* pin [ ] is an integer array of PIN numbers for the respective accounts */

int pin [SIZE] = { 1234, 2345, 3456, 4567,

5678, 6789, 7890, 8901};

/* balance [ ] is a float array with the starting balance for each account */

float balance [SIZE] = { 500.00, 500.00, 500.00, 500.00,

500.00, 500.00, 500.00, 500.00 };

/* machineBalance is a float variable which gives the current amount */

/* of cash left in the machine */

/* ---- function definitions ---- */

int main (void)

{

….

}

while (FOREVER)

{

accountNumber = enter_account ( );

accountIndex = validate_account(accountNumber);

if (accountIndex != NOT_FOUND)

{ /* we have a valid account number */

pin = enter_pin ( ); /* get a pin number */

if (validate_pin (pin, accountIndex) == 1)

{

transaction = enter_transation ( );

while (transaction != 3)

{

switch (transaction)

{

case 1: /* display balance */

display_account_balance(accountIndex);

break;

case 2:

get_cash (accountIndex);

break;

…

}

transaction = enter_transaction ( );

}

display_goodbye_prompt ( );

}

…

}

…

}

/* ------------------------------------------------------

* Find the index of an account number. If not found,

* return NOT_FOUND

* ------------------------------------------------------ */

int find_account_index(int acct, int size)

{

int i;

int foundIt = 0;

for ( i = 0; i < size; i++)

if (account[i] == acct)

{

foundIt = 1; /* found the account number */

break; /* break out of _for _ loop */

}

if (foundIT == 0)

i = NOT_FOUND;

return(i);

}

/* ---------------------------------------------------------

* Validates the pin number for a given account. If the

* pin number matches the number in the pin [ ] array for

* this account index, then return a one, otherwise, return

* a zero.

* ---------------------------------------------------------*/

int validate_pin (int pinNo, int index)

{

int result; /* result of validation */

if (pinNo == pin[Index])

result = 1; /* pin number correct */

else result = 0; /* pin number incorrect */

return(result);

}

/* ---------------------------------------------------------

* Get cash for withdrawal from the account.

* Prompt for an amount to withdraw, and allow the

* withdrawal if the amount is <= the account balance, and

* if the amount is <= the machine balance.

* ---------------------------------------------------------*/

void get_cash(int index)

{

float withdrawal; /* amount to withdraw */

printf("Please enter the amount to withdraw: ");

scanf("%f", &withdrawal);

if (withdrawal <= machineBalance &&

withdrawal <= balance[index])

{

/*

}

/* give reason for not dispensing cash */

else if (withdrawal > balance[index])

{

printf("Unable to process request, "

"insufficient funds in your account.\n");

printf("You have $%.2f available for withdrawal.\n",

balance[index]);

}

else

{

printf("Insufficient cash in this machine to "

"process your request.\n");

printf("Only $%.2f available in this machine\n",

machineBalance);

}

return;

}

Object Oriented Design (OOD) and Object Oriented Programming (OOP) is currently the favored design methodology for large programs.

Objects extend the concept of structured data types from procedural language to include subprograms within a self-contained module called an abstract data type. The abstract data type contains data and the functions which act on that data. The abstract data type provides encapsulation of the data and procedures, and information hiding, to protect the data from other modules.

In functions, we use local variables for data hiding. In C++ the data may be private (local) or public (global).

Abstract data types are called classes in C++, which are an extension of the structured data types in the C language. The functions contained within a class are called methods.

The reason companies are interested in OOP with C++ and other languages (Smalltalk) is for improved efficiency of program development. After the conversion from procedural programming to object oriented programming (over several projects), companies have achieved 30 to 40 percent improvement in programming development.

This improvement comes from these advantages of OOP:

Generation of reusable code and data

Code is easier to maintain

More portability across platforms

Object oriented language have the ability to derive new classes from existing classes, using inheritance. From a generic class object which models data and actions, you can inherit these characteristics into a new class which has some new characteristics you add.

The most popular object oriented language is C++. This language was developed as a superset of the C language, starting in 1980. A superset means that C++ has all the features of the C language, plus some additional capabilities to handle objects. The C language has thirty two reserved words (like for, while, and int). C++ adds sixteen more keywords to improve on the features of C, and add new features.

One new reserved word in C++ is class, which allows you to declare a structured data type variable, with its own set of self-contained functions. In a class, the functions are directly associated with their data. This is the mechanism C++ uses to create self-contained objects.

Here is a C++ program which uses stream input/output and the new C++ comment. In programming terms, a stream is an idealized continuous flow of characters into or out of the program. In C++, we can refer to the standard input of the program (usually the keyboard) with the term cin, and the standard output (usually the display) with the term cout. These terms, plus the stream insertion operator << and the stream extraction operator >> make it very easy to do input/output in C++ (without using printf and scanf).

#include <stdio.h> /* for standard input/output */

/* This program prompts the user for a number,

prints that number,

and its square */

main ( )

{

int val; /* comment */

printf ("Enter a number: ");

scanf ("%d", &val);

printf ("You entered the number %d.\n", val);

printf ("%d squared is %d.\n", val, val * val);

}

Program output

Enter a number: 5

You entered the number 5.

5 squared is 25.

#include <iostream.h> /* for stream input/output */

// This program prompts the user for a number,

// prints that number,

// and its square

int main (void)

{

int val; // comment

cout << "Enter a number: ";

cin >> val;

cout << "You entered the number " << val << ".\n";

cout << val << " squared is " << val * val;

return (0);

}

Program output

Enter a number: 5

You entered the number 5.

5 squared is 25

Notice these improvements in the C++ version of the program:

The single line comment // is quicker and safer to write.

We did not have to use conversion specifiers, or use the & operator in the input statement

We did not have to identify the data type and use conversion specifiers in the output

statement

Java is an object oriented programming language derived from C++. Originally designed for embedded control applications, Java is now finding wide popularity as a language for developing applications for the World Wide Web.

Here are some of the characteristics of Java

Object oriented

Simpler and safer than C or C++ (no pointers)

Generate intermediate byte code for cross platform portability

Interpret on target machine

Designed to work over a network: secure, easily downloadable.

Here is an example of a short program in Java, the classic "hello world" program.

Class HelloWorld

{

static public void main (String args [ ])

{

System.out.println("Hello world!");

}

}

This should look somewhat familiar to what we did with functions in C. A class is a function-like object from C++ which has self-contained data and operations called methods which change the data or perform actions.

As compared to C and C++, the Java language does not have these features

Automatic conversion of data types - must use cast

Pointers - manages memory automatically

Visual programming uses a drag and drop interface to rapidly design sophisticated windows programs. Visual programming techniques are used in Rapid Application Development (RAD), where a good deal of the program can be developed using existing objects of the visual programming environment, with a small amount of the program written as actual application code.

Some elements of a visual programming environment are:

• Forms, which provide windows to display information and hold controls.

• Controls, objects the user can interact with, such as buttons, text boxes which allow input/output, grids of numbers from a database, etc. A typical control would be a check box, which allows you to select an option by clicking the mouse on the box.

• Events, user actions on the controls, such as a mouse click on the button.

• Properties, give built-in characteristics of an object, such as a left or right justified label.

• Code, the programming language code which you write to respond to a particular event.

Some examples of visual programming environments are Visual Basic, Visual C++, Delphi, and PowerBuilder.
